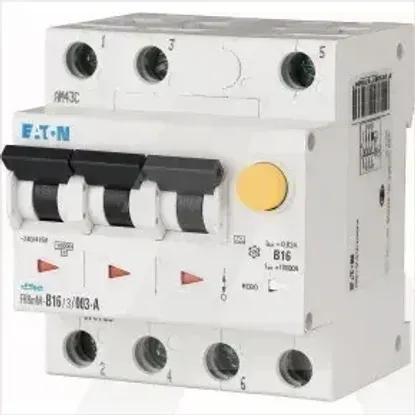

Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •EATON
Technical specifications
Number of poles (total)3
Number of protected poles3
Rated fault current0.03A
Current limiting class3
Rated voltage415V
Rated impulse withstand voltage Uimp4kV
Rated insulation voltage Ui500V
Rated short-circuit breaking capacity according to EN 6100910kA
Rated current10A
Leakage current typeA
Rated short-circuit breaking capacity Icn according to EN 61009-110kA
Rated short-circuit breaking capacity according to IEC 60947-215kA
Built-in depth75.5mm
Surge current capacity0.25kA
Voltage typeAC
Degree of protection (IP)IP20
Disconnection characteristicUndelayed
Anti-nuisance tripping versionNo
Pollution degree2
Width in number of modular spacings4
Release characteristicD
Concurrently switching neutral conductorNo
Connectable conductor cross section multi-wired1 - 25mm²
Over voltage category3
Frequency50 Hz
Connectable conductor cross section solid-core1 - 25mm²
Ambient temperature during operating-25 - 40°C
With interlocking deviceNo
Flush-mounted installationNo
