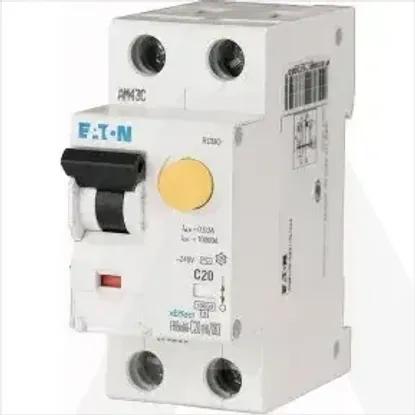

Details
- •Circuit breakers and fuses
- •Earth leakage circuit breaker
- •1 KOM
- •EATON
Technical specifications
Voltage typeAC
Built-in depth75.5mm
Leakage current typeA
Rated insulation voltage Ui500V
Number of protected poles1
Frequency50 Hz
Width in number of modular spacings2
Current limiting class3
Concurrently switching neutral conductorYes
Rated current6A
Degree of protection (IP)IP20
Rated short-circuit breaking capacity according to IEC 60947-215kA
Pollution degree2
Release characteristicD
Surge current capacity0.25kA
Rated fault current0.3A
Over voltage category3
Rated voltage240V
With interlocking deviceNo
Connectable conductor cross section solid-core1 - 25mm²
Ambient temperature during operating-25 - 40°C
Connectable conductor cross section multi-wired1 - 25mm²
Flush-mounted installationNo
Number of poles (total)2
Disconnection characteristicUndelayed
Rated impulse withstand voltage Uimp4kV
Rated short-circuit breaking capacity according to EN 6100910kA
Anti-nuisance tripping versionNo
Rated short-circuit breaking capacity Icn according to EN 61009-110kA
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
FRBmM-D6/1N/03-A
