Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •EATON
Technical specifications
Selective protectionNo
Rated fault current0.03mA
Mounting methodDIN rail
Leakage current typeB+
Built-in depth70.5mm
Number of poles4
Voltage typeAC
Rated current63A
Rated insulation voltage Ui440V
Rated voltage415V
Width in number of modular spacings4
Pollution degree2
Short-time delayed trippingYes
Surge current capacity3kA
Short-circuit breaking capacity (Icw)10kA
Connectable conductor cross section multi-wired1.5 - 16mm²
With interlocking deviceYes
Frequency50 Hz
Rated impulse withstand voltage Uimp4kV
Degree of protection (IP)IP20
Additional equipment possibleYes
Connectable conductor cross section solid-core1.5 - 35mm²
RAL-number (similar)7035
Explosion-proofNo
Ambient temperature during operating-25 - 60°C
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

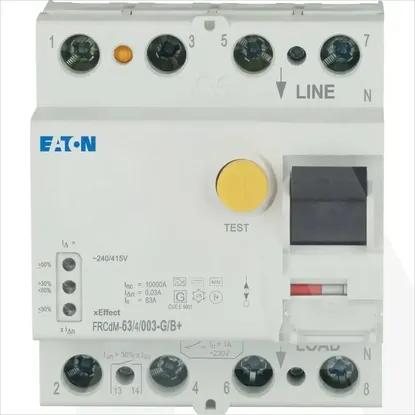

FRCdM-63/4/003-G/B+
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Circuit breakers and fuses
- Residual current circuit breaker (RCCB)
- 1 KOM
- EATON
DetailsTechnical specificationsRelated products
Technical specifications
Selective protection
Rated fault current
0.03mA
Mounting method
DIN rail
Leakage current type
B+
Built-in depth
70.5mm
Number of poles
4
Voltage type
AC
Rated current
63A
Rated insulation voltage Ui
440V
Rated voltage
415V
Width in number of modular spacings
4
Pollution degree
2
Short-time delayed tripping
Surge current capacity
3kA
Short-circuit breaking capacity (Icw)
10kA
Connectable conductor cross section multi-wired
1.5 .. 16mm²
With interlocking device
Frequency
50 Hz
Rated impulse withstand voltage Uimp
4kV
Degree of protection (IP)
IP20
Additional equipment possible
Connectable conductor cross section solid-core
1.5 .. 35mm²
RAL-number (similar)
7035
Explosion-proof
Ambient temperature during operating
-25 .. 60°C
