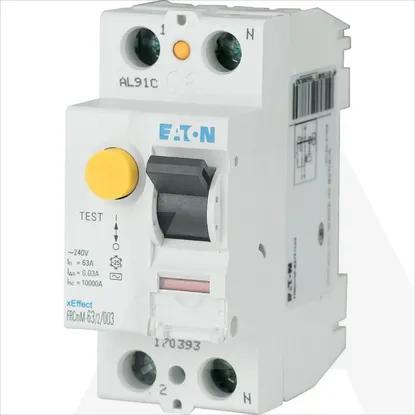

Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •EATON
Technical specifications
Mounting methodDIN rail
Rated insulation voltage Ui440V
Number of poles2
Rated fault current0.3mA
Short-circuit breaking capacity (Icw)10kA
Rated voltage240V
Voltage typeAC
Leakage current typeAC
Surge current capacity3kA
Built-in depth70.5mm
Rated current25A
Connectable conductor cross section multi-wired1.5 - 16mm²
RAL-number (similar)7035
Width in number of modular spacings2
With interlocking deviceYes
Frequency50/60 Hz
Short-time delayed trippingYes
Pollution degree2
Connectable conductor cross section solid-core1.5 - 35mm²
Degree of protection (IP)IP20
Explosion-proofNo
Selective protectionNo
Ambient temperature during operating-25 - 40°C
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
