Details
- •Circuit breakers and fuses

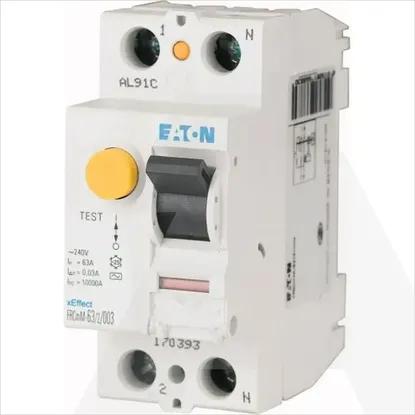

- •Residual current circuit breaker (RCCB)
- •1 KOM
- •EATON
Technical specifications
Rated fault current0.03mA
Leakage current typeA
Number of poles2
Rated current40A
Rated voltage277V
Mounting methodDIN rail
Voltage typeAC
Built-in depth70.5mm
Rated insulation voltage Ui440V
Explosion-proofNo
Degree of protection (IP)IP20
Selective protectionNo
Surge current capacity3kA
Pollution degree2
Width in number of modular spacings2
RAL-number (similar)7035
Short-time delayed trippingYes
Frequency50/60 Hz
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section multi-wired1.5 - 16mm²
With interlocking deviceYes
Ambient temperature during operating-25 - 40°C
Additional equipment possibleYes
Connectable conductor cross section solid-core1.5 - 35mm²
Short-circuit breaking capacity (Icw)10kA
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
FRCmM-40/2/003-G/A-NA
