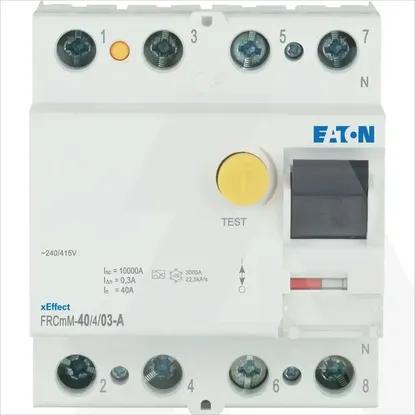

FRCmM-40/4/03-A
Code: 1637364
Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •EATON
Technical specifications
Rated insulation voltage Ui440V
Mounting methodDIN rail
Rated impulse withstand voltage Uimp4kV
Rated current40A
Selective protectionNo
Rated fault current0.3mA
Rated voltage415V
Short-time delayed trippingNo
Leakage current typeA
Number of poles4
Degree of protection (IP)IP20
Short-circuit breaking capacity (Icw)10kA
Voltage typeAC
Surge current capacity0.25kA
With interlocking deviceYes
Width in number of modular spacings4
Pollution degree2
Built-in depth70.5mm
Additional equipment possibleYes
Frequency50/60 Hz
Ambient temperature during operating-25 - 40°C
Connectable conductor cross section solid-core1.5 - 35mm²
Explosion-proofNo
RAL-number (similar)7035
Connectable conductor cross section multi-wired1.5 - 16mm²
