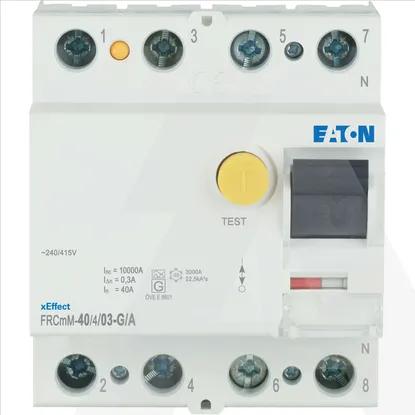

FRCmM-40/4/03-G/A
Code: 1637368
Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •EATON
Technical specifications
Rated voltage415V
Rated current40A
Rated fault current0.3mA
Rated insulation voltage Ui440V
Short-time delayed trippingYes
Mounting methodDIN rail
Short-circuit breaking capacity (Icw)10kA
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
Surge current capacity3kA
Selective protectionNo
Frequency50/60 Hz
Leakage current typeA
Ambient temperature during operating-25 - 40°C
Width in number of modular spacings4
Connectable conductor cross section multi-wired1.5 - 16mm²
Pollution degree2
With interlocking deviceYes
Built-in depth70.5mm
Connectable conductor cross section solid-core1.5 - 35mm²
Explosion-proofNo
RAL-number (similar)7035
Number of poles4
Voltage typeAC
Degree of protection (IP)IP20
