Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •EATON
Technical specifications
Number of poles4
Rated insulation voltage Ui440V
Rated fault current0.3mA
Leakage current typeA
Selective protectionNo
Built-in depth70.5mm
Rated voltage480V
Voltage typeAC
Mounting methodDIN rail
Rated current40A
RAL-number (similar)7035
Surge current capacity3kA
Short-circuit breaking capacity (Icw)10kA
Width in number of modular spacings4
Pollution degree2
Short-time delayed trippingYes
Degree of protection (IP)IP20
With interlocking deviceYes
Connectable conductor cross section solid-core1.5 - 35mm²
Additional equipment possibleYes
Connectable conductor cross section multi-wired1.5 - 16mm²
Explosion-proofNo
Frequency50/60 Hz
Rated impulse withstand voltage Uimp4kV
Ambient temperature during operating-25 - 40°C
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

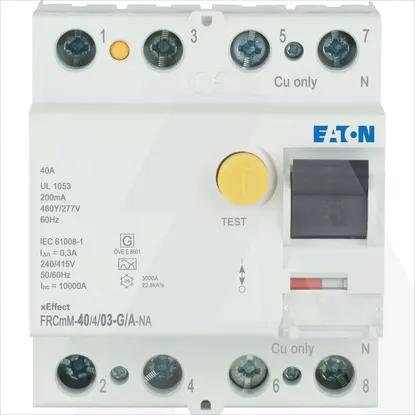

FRCmM-40/4/03-G/A-NA
