Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •EATON
Technical specifications
Voltage typeAC
Number of poles4
Rated fault current0.3mA
Rated voltage415V
Rated current40A
Built-in depth70.5mm
Rated insulation voltage Ui440V
Mounting methodDIN rail
RAL-number (similar)7035
Surge current capacity5kA
Leakage current typeA
Explosion-proofNo
Ambient temperature during operating-25 - 40°C
Short-time delayed trippingNo
Degree of protection (IP)IP20
Selective protectionYes
Additional equipment possibleYes
Pollution degree2
With interlocking deviceYes
Connectable conductor cross section multi-wired1.5 - 16mm²
Short-circuit breaking capacity (Icw)10kA
Connectable conductor cross section solid-core1.5 - 35mm²
Rated impulse withstand voltage Uimp4kV
Frequency50/60 Hz
Width in number of modular spacings4
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

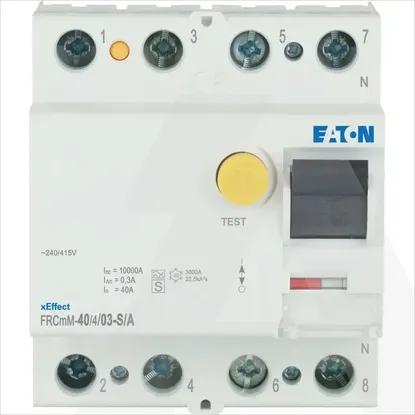

FRCmM-40/4/03-S/A
