Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •EATON
Technical specifications
Voltage typeAC
Mounting methodDIN rail
Rated current80A
Number of poles2
Built-in depth70.5mm
Rated fault current0.03mA
Rated insulation voltage Ui440V
Rated voltage240V
Leakage current typeA
Degree of protection (IP)IP20
RAL-number (similar)7035
Connectable conductor cross section solid-core1.5 - 35mm²
Selective protectionNo
Short-time delayed trippingNo
Surge current capacity0.25kA
Pollution degree2
Connectable conductor cross section multi-wired1.5 - 16mm²
Width in number of modular spacings2
Explosion-proofNo
Frequency50/60 Hz
Short-circuit breaking capacity (Icw)10kA
Rated impulse withstand voltage Uimp4kV
With interlocking deviceYes
Additional equipment possibleYes
Ambient temperature during operating-25 - 40°C
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

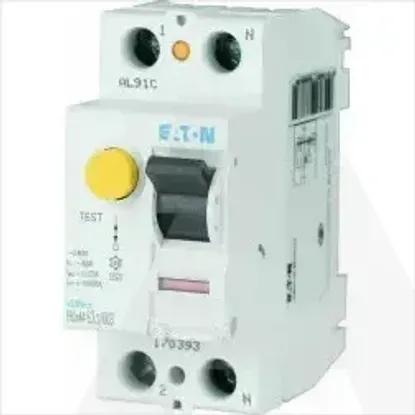

FRCmM-80/2/003-A
