Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •EATON
Technical specifications
Voltage typeAC
Leakage current typeA
Width in number of modular spacings4
Additional equipment possibleYes
Selective protectionNo
Degree of protection (IP)IP20
Rated fault current0.3mA
Rated current80A
Surge current capacity0.25kA
Rated impulse withstand voltage Uimp4kV
With interlocking deviceYes
Pollution degree2
Short-time delayed trippingNo
Rated voltage415V
Connectable conductor cross section solid-core1.5 - 35mm²
Rated insulation voltage Ui440V
RAL-number (similar)7035
Built-in depth70.5mm
Explosion-proofNo
Ambient temperature during operating-25 - 40°C
Connectable conductor cross section multi-wired1.5 - 16mm²
Number of poles4
Short-circuit breaking capacity (Icw)10kA
Mounting methodDIN rail
Frequency50/60 Hz
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

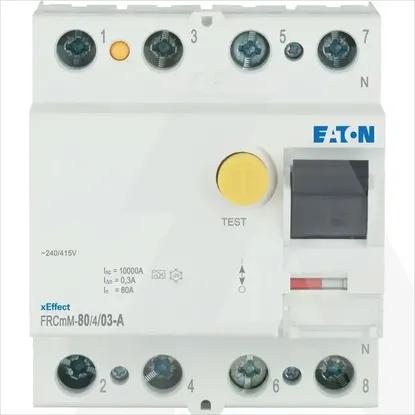

FRCmM-80/4/03-A
