Details
- •Circuit breakers and fuses
- •Residual current circuit breaker (RCCB)
- •1 KOM
- •EATON
Technical specifications
Rated voltage415V
Rated current80A
Built-in depth70.5mm
Mounting methodDIN rail
Voltage typeAC
Surge current capacity0.25kA
Rated insulation voltage Ui440V
Selective protectionNo
Short-circuit breaking capacity (Icw)10kA
Number of poles4
Leakage current typeAC
Rated fault current0.5mA
RAL-number (similar)7035
Degree of protection (IP)IP20
Frequency50 Hz
Width in number of modular spacings4
Explosion-proofNo
Short-time delayed trippingNo
Pollution degree2
With interlocking deviceYes
Ambient temperature during operating-25 - 75°C
Connectable conductor cross section solid-core1.5 - 35mm²
Rated impulse withstand voltage Uimp4kV
Connectable conductor cross section multi-wired1.5 - 16mm²
Additional equipment possibleYes
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

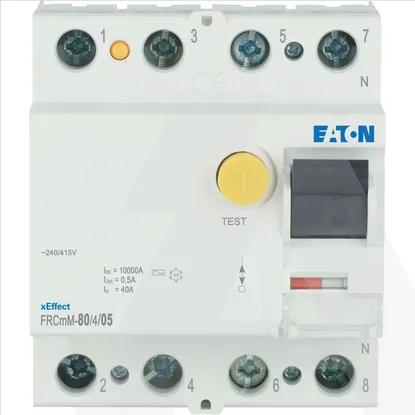

FRCmM-80/4/05
