Details

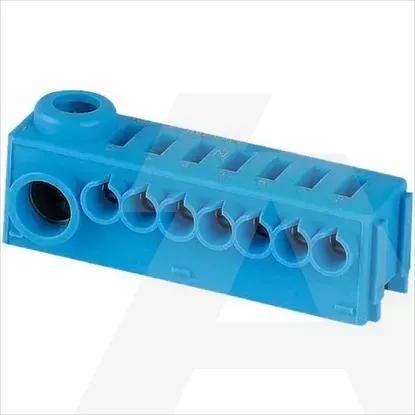

- •Terminal blocks
- •Single- and multi-pole terminal strip
- •1 KOM
- •EATON
Technical specifications
Height17mm
Width55mm
Number of poles1
Operating temperature35 - 35°C
Halogen freeYes
Depth19.5mm
ColourBlue
Mounting methodDirect mounting
Rated voltage400V
Drill hole distance centrically1mm
Rated current In63A
Connectable conductor cross section solid-core2.5 - 25mm²
Connectable conductor cross section multi-wired2.5 - 25mm²
Connectable conductor cross section fine-strand with cable end sleeve2.5 - 16mm²
Connectable conductor cross section fine-strand without cable end sleeve2.5 - 25mm²
Closing plate requiredNo
Type of electrical connection 2Plug-in connection
Type of electrical connection 1Screw connection
Number of clamp positions per pole8
Inflammability class of insulation material according to with UL94V0
Material insulation bodyThermoplastic
TransparentNo
Explosion-tested version 'Ex e'No
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
KSK-N
