Details
- •Terminal blocks
- •Single- and multi-pole terminal strip
- •1 KOM
- •EATON
Technical specifications
TransparentNo
Height17mm
Type of electrical connection 2Plug-in connection
Halogen freeYes
Connectable conductor cross section solid-core2.5 - 25mm²
Number of clamp positions per pole8
ColourGreen
Drill hole distance centrically1mm
Mounting methodDirect mounting
Depth19.5mm
Width55mm
Operating temperature35 - 35°C
Rated voltage400V
Type of electrical connection 1Screw connection
Closing plate requiredNo
Number of poles1
Inflammability class of insulation material according to with UL94V0
Material insulation bodyThermoplastic
Rated current In63A
Connectable conductor cross section fine-strand with cable end sleeve2.5 - 16mm²
Connectable conductor cross section multi-wired2.5 - 25mm²
Explosion-tested version 'Ex e'No
Connectable conductor cross section fine-strand without cable end sleeve2.5 - 25mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

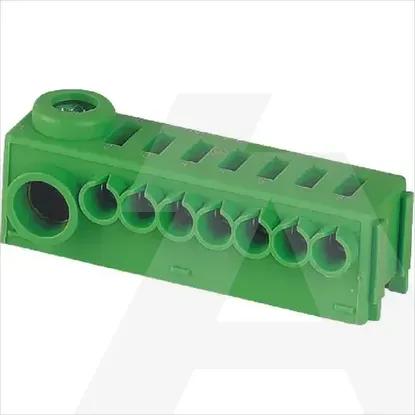

KSK-PE
