Details
- •Sensors
- •End switch
- •1 KOM
- •EATON
Technical specifications
Explosion safety category for gasNone
Type of interface for safety communicationNone
Switching functionSlow-action switch
Forced openingYes
Type of interfaceNone
With status indicationNo
Degree of protection (IP)IP65
Rated operation current Ie at DC-13, 230 V0.3A
Material housingPlastic
Explosion safety category for dustNone
Suitable for safety functionsYes
Number of safety auxiliary contacts2
Rated operation current Ie at DC-13, 125 V0.8A
Coating housingOther
Output electronicNo
Type of control elementPlunger
Rated operation current Ie at AC-15, 230 V6A
Rated operation current Ie at DC-13, 24 V3A
Rated operation current Ie at AC-15, 125 V6A
Construction type housingCuboid
Type of electric connectionCable entry metrical
Rated operation current Ie at AC-15, 24 V6A
Ambient temperature during operating-40 - 70°C
Switching function latchingNo
Alignment of the control elementRoller cam straight
Number of contacts as normally open contact0
Number of contacts as normally closed contact2
Length of sensor33.5mm
Width sensor31mm
Diameter sensor0mm
Height of sensor61mm
Degree of protection (NEMA)Other
Number of contacts as change-over contact0
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

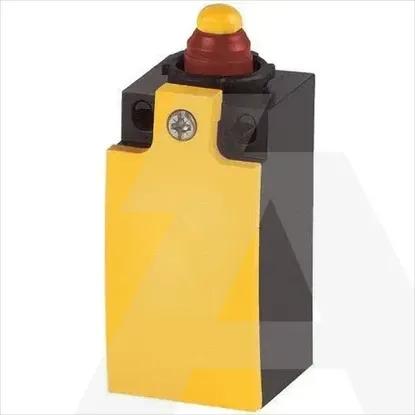

LS-02-CC
