Details
- •Sensors
- •End switch
- •1 KOM
- •EATON
Technical specifications
Type of control elementPlunger
Forced openingYes
Rated operation current Ie at AC-15, 24 V6A
Type of interface for safety communicationNone
Type of interfaceNone
Rated operation current Ie at AC-15, 125 V6A
Type of electric connectionCable entry metrical
Rated operation current Ie at AC-15, 230 V6A
Suitable for safety functionsYes
With status indicationNo
Number of safety auxiliary contacts1
Construction type housingCuboid
Explosion safety category for gasNone
Material housingPlastic
Degree of protection (IP)IP65
Switching functionSlow-action switch
Explosion safety category for dustNone
Output electronicNo
Coating housingOther
Rated operation current Ie at DC-13, 230 V0.3A
Width sensor31mm
Alignment of the control elementRoller cam straight
Number of contacts as change-over contact0
Rated operation current Ie at DC-13, 125 V0.8A
Height of sensor61mm
Diameter sensor0mm
Rated operation current Ie at DC-13, 24 V3A
Number of contacts as normally open contact1
Degree of protection (NEMA)Other
Number of contacts as normally closed contact1
Length of sensor33.5mm
Switching function latchingNo
Ambient temperature during operating-40 - 70°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

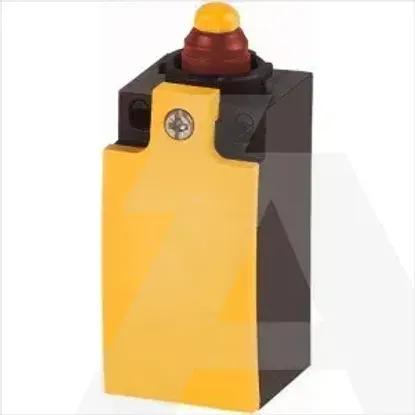

LS-11DA-CC
