Details
- •Sensors
- •End switch
- •1 KOM
- •EATON
Technical specifications
Switching functionSlow-action switch
Type of control elementPlunger
Explosion safety category for dustNone
Number of safety auxiliary contacts1
Type of interfaceNone
Rated operation current Ie at AC-15, 230 V6A
Explosion safety category for gasNone
Material housingPlastic
Forced openingYes
Type of interface for safety communicationNone
Rated operation current Ie at AC-15, 125 V6A
Suitable for safety functionsYes
Rated operation current Ie at DC-13, 125 V0.8A
Output electronicNo
Construction type housingCuboid
Type of electric connectionCable entry metrical
With status indicationNo
Rated operation current Ie at DC-13, 230 V0.3A
Coating housingOther
Rated operation current Ie at DC-13, 24 V3A
Rated operation current Ie at AC-15, 24 V6A
Ambient temperature during operating-40 - 70°C
Number of contacts as normally closed contact1
Switching function latchingNo
Diameter sensor0mm
Degree of protection (NEMA)Other
Number of contacts as change-over contact0
Number of contacts as normally open contact1
Length of sensor33.5mm
Alignment of the control elementRoller cam straight
Degree of protection (IP)IP65
Width sensor31mm
Height of sensor61mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

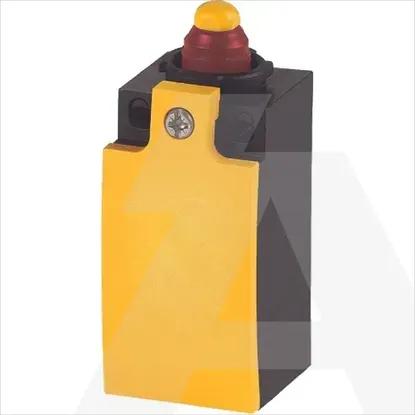

LS-S11A-CC
