Details

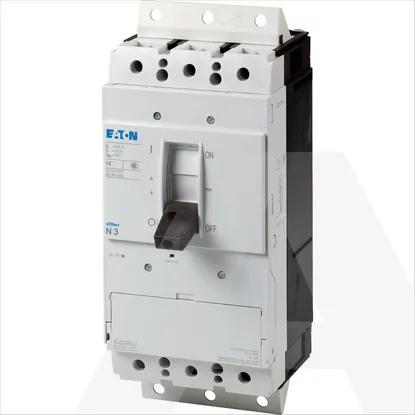

- •Switch disconnector, 3pole, prepared for plug
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Height215.2mm
Depth335mm
Rated operation power at AC-3, 400 V0kW
Number of auxiliary contacts as normally open contact0
Width140mm
Conditioned rated short-circuit current Iq0kA
Number of auxiliary contacts as change-over contact0
Rated operating voltage690 - 690V
Number of switches1
Degree of protection (IP), front sideIP20
Number of auxiliary contacts as normally closed contact0
Version as safety switchNo
Version as emergency stop installationYes
InterlockableYes
Type of control elementRocker lever
Rated operation power at AC-23, 400 V200kW
Motor drive integratedNo
Version as maintenance-/service switchYes
Version as main switchYes
Suitable for intermediate mountingYes
Suitable for floor mountingYes
Colour control elementBlack
Rated short-time withstand current lcw12kA
Suitable for distribution board installationYes
Suitable for front mounting centreNo
Suitable for front mounting 4-holeNo
Type of electrical connection of main circuitScrew connection
Rated permanent current at AC-23, 400 V0A
Degree of protection (NEMA)Other
Rated permanent current at AC-21, 400 V0A
Voltage release optionalYes
Version as reversing switchNo
Switching power at 400 V0kW
Device constructionBuilt-in device plug-in technique
With pre-assembled cablingNo
Motor drive optionalYes
Rated permanent current Iu400A
Number of poles3
Max. rated operation voltage Ue AC690V
