Details

  • •Low-voltage industrial components
  • •Switch disconnector (low voltage)
  • •1 KOM
  • •EATON

Technical specifications

Width185mm
Motor drive integratedNo
Rated permanent current Iu400A
Rated operating voltage690 - 690V
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V0kW
Version as main switchYes
Number of auxiliary contacts as change-over contact0
Number of poles4
Depth335mm
Version as emergency stop installationYes
Version as safety switchNo
Number of auxiliary contacts as normally closed contact0
Degree of protection (IP), front sideIP20
Type of control elementRocker lever
Height215.2mm
Conditioned rated short-circuit current Iq0kA
Version as maintenance-/service switchYes
Type of electrical connection of main circuitScrew connection
InterlockableYes
Number of switches1
Rated operation power at AC-23, 400 V200kW
Suitable for front mounting centreNo
Version as reversing switchNo
Motor drive optionalYes
Suitable for floor mountingYes
Suitable for front mounting 4-holeNo
Suitable for distribution board installationYes
Rated permanent current at AC-23, 400 V0A
Suitable for intermediate mountingYes
Device constructionBuilt-in device plug-in technique
Rated permanent current at AC-21, 400 V0A
Degree of protection (NEMA)Other
With pre-assembled cablingNo
Switching power at 400 V0kW
Rated short-time withstand current lcw12kA
Colour control elementBlack
Voltage release optionalYes
Max. rated operation voltage Ue AC690V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

N3-4-400-SVE

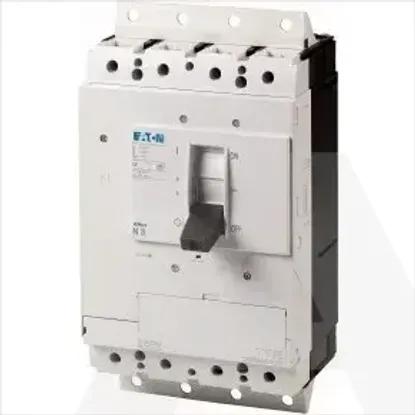

Main Product Image
