Details

  • •Low-voltage industrial components
  • •Switch disconnector (low voltage)
  • •1 KOM
  • •EATON

Technical specifications

Width185mm
Height215.2mm
Rated operation power at AC-3, 400 V0kW
Depth335mm
InterlockableYes
Type of control elementRocker lever
Number of poles4
Rated permanent current Iu630A
Type of electrical connection of main circuitScrew connection
Version as emergency stop installationYes
Motor drive integratedNo
Degree of protection (IP), front sideIP20
Number of auxiliary contacts as normally closed contact0
Number of switches1
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally open contact0
Rated operating voltage690 - 690V
Conditioned rated short-circuit current Iq0kA
Suitable for floor mountingYes
Rated operation power at AC-23, 400 V315kW
Version as main switchYes
Colour control elementBlack
Version as maintenance-/service switchYes
Rated short-time withstand current lcw12kA
Suitable for front mounting centreNo
Version as safety switchNo
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingYes
Voltage release optionalYes
Version as reversing switchNo
Switching power at 400 V0kW
Rated permanent current at AC-23, 400 V0A
With pre-assembled cablingNo
Motor drive optionalYes
Suitable for distribution board installationYes
Rated permanent current at AC-21, 400 V0A
Device constructionBuilt-in device plug-in technique
Degree of protection (NEMA)Other
Max. rated operation voltage Ue AC690V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

N3-4-630-SVE

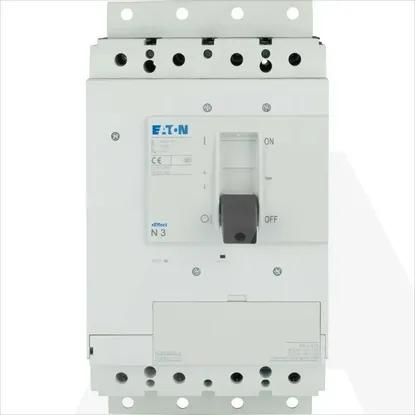

Main Product Image
