Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally open contact0
Height215.2mm
Rated operation power at AC-3, 400 V0kW
Depth335mm
Width140mm
Number of switches1
Rated permanent current Iu630A
Motor drive integratedNo
Number of poles3
Number of auxiliary contacts as normally closed contact0
Degree of protection (IP), front sideIP20
Number of auxiliary contacts as change-over contact0
Version as safety switchNo
Version as emergency stop installationYes
Type of control elementRocker lever
Conditioned rated short-circuit current Iq0kA
Rated operation power at AC-23, 400 V315kW
Version as maintenance-/service switchYes
Version as main switchYes
Type of electrical connection of main circuitScrew connection
Rated operating voltage690 - 690V
InterlockableYes
Suitable for intermediate mountingYes
Max. rated operation voltage Ue AC690V
Colour control elementBlack
Suitable for floor mountingYes
Suitable for front mounting 4-holeNo
Suitable for distribution board installationYes
Rated short-time withstand current lcw12kA
Suitable for front mounting centreNo
Voltage release optionalYes
Device constructionBuilt-in device plug-in technique
Version as reversing switchNo
Switching power at 400 V0kW
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V0A
Rated permanent current at AC-21, 400 V0A
With pre-assembled cablingNo
Motor drive optionalYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

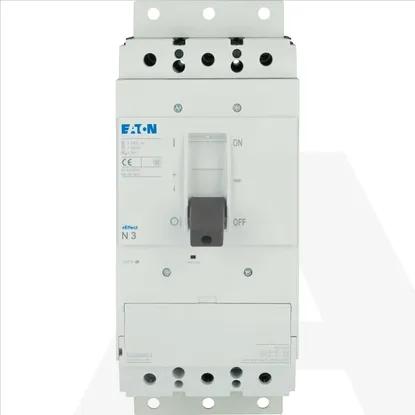

N3-630-SVE
