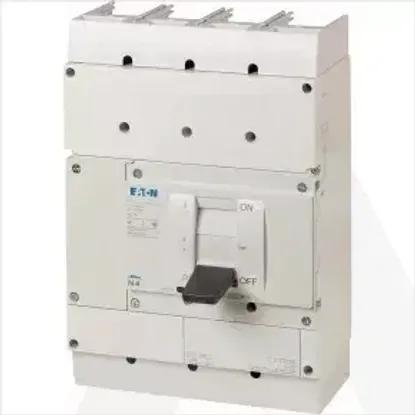

N4-4-800-S15-DC
Code: 1638263
ManufacturerEaton
Catalog number166413
TypeN4-4-800-S15-DC
CategorySwitch disconnector
EAN code4015081629213
Details
- •Switch disconnectors, 4pole, can be tripped r
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Rated operation power at AC-3, 400 V0kW
Number of auxiliary contacts as change-over contact0
Width280mm
Number of switches1
Number of auxiliary contacts as normally open contact0
Degree of protection (IP), front sideIP20
Number of auxiliary contacts as normally closed contact0
Rated operating voltage1500 - 1500V
Motor drive integratedNo
InterlockableYes
Conditioned rated short-circuit current Iq0kA
Depth401mm
Height207mm
Type of electrical connection of main circuitScrew connection
Version as emergency stop installationYes
Type of control elementRocker lever
Version as safety switchNo
Version as main switchYes
Suitable for floor mountingYes
Suitable for intermediate mountingYes
Version as maintenance-/service switchYes
Voltage release optionalYes
Suitable for front mounting centreNo
Rated permanent current at AC-21, 400 V0A
Suitable for distribution board installationYes
Device constructionBuilt-in device fixed built-in technique
Motor drive optionalYes
Rated short-time withstand current lcw34kA
Rated operation power at AC-23, 400 V0kW
Switching power at 400 V0kW
Suitable for front mounting 4-holeNo
Colour control elementBlack
Version as reversing switchNo
Rated permanent current at AC-23, 400 V0A
With pre-assembled cablingNo
Degree of protection (NEMA)Other
Rated permanent current Iu800A
Number of poles4
Max. rated operation voltage Ue AC0V
