Aleta.hr

Details

  • •Low-voltage industrial components
  • •Motor protection circuit-breaker
  • •1 KOM
  • •EATON

Technical specifications

Degree of protection (IP)IP20
Width185mm
Type of control elementRocker lever
Height260mm
Number of poles3
Depth346mm
Rated permanent current Iu250A
Overload release current setting0 - 0A
Type of electrical connection of main circuitScrew connection
Device constructionBuilt-in device slide-in technique (withdrawable)
Adjustment range undelayed short-circuit release8 - 14A
Rated operation power at AC-3, 400 V132kW
Rated operating voltage690 - 690V
With integrated under voltage releaseNo
With integrated auxiliary switchNo
Phase failure sensitiveNo
Rated short-circuit breaking capacity lcu at 400 V, AC36kA
Switch off techniqueMagnetic
Rated operation power at AC-3, 230 V75kW
With thermal protectionNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

NZMC3-S250-AVE

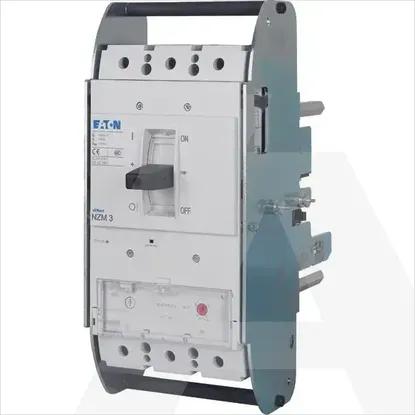

Main Product Image

Details

  • Low-voltage industrial components
  • Motor protection circuit-breaker
  • 1 KOM
  • EATON

Technical specifications

Degree of protection (IP)

IP20

Width

185mm

Type of control element

Rocker lever

Height

260mm

Number of poles

3

Depth

346mm

Rated permanent current Iu

250A

Overload release current setting

0 .. 0A

Type of electrical connection of main circuit

Screw connection

Device construction

Built-in device slide-in technique (withdrawable)

Adjustment range undelayed short-circuit release

8 .. 14A

Rated operation power at AC-3, 400 V

132kW

Rated operating voltage

690 .. 690V

With integrated under voltage release

With integrated auxiliary switch

Phase failure sensitive

Rated short-circuit breaking capacity lcu at 400 V, AC

36kA

Switch off technique

Magnetic

Rated operation power at AC-3, 230 V

75kW

With thermal protection

*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
