Details
- •Low-voltage industrial components
- •Motor protection circuit-breaker
- •1 KOM
- •EATON
Technical specifications
Depth335mm
Rated permanent current Iu500A
Number of poles3
With integrated auxiliary switchNo
Height215.2mm
Rated operating voltage690 - 690V
Rated operation power at AC-3, 400 V250kW
With integrated under voltage releaseNo
Width140mm
Degree of protection (IP)IP20
Overload release current setting0 - 0A
Device constructionBuilt-in device plug-in technique
Switch off techniqueMagnetic
Phase failure sensitiveNo
Type of control elementRocker lever
Rated operation power at AC-3, 230 V160kW
With thermal protectionNo
Adjustment range undelayed short-circuit release6 - 10A
Rated short-circuit breaking capacity lcu at 400 V, AC36kA
Type of electrical connection of main circuitScrew connection
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

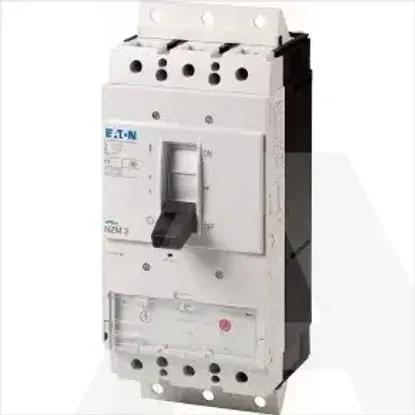

NZMC3-S500-SVE
