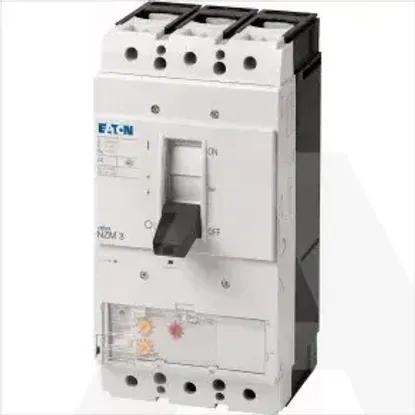

NZMH3-ME220-S1
Code: 1638611
ManufacturerEaton
Catalog number119364
TypeNZMH3-ME220-S1
CategoryMotor protection circuit-breaker
EAN code4015081175000
Details
- •Circuit-breaker, 3pole, motor protection, In=
- •Low-voltage industrial components
- •Motor protection circuit-breaker
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Depth166mm
Width140mm
With integrated auxiliary switchNo
Height275mm
With thermal protectionYes
Rated operation power at AC-3, 230 V55kW
Degree of protection (IP)IP20
Device constructionBuilt-in device fixed built-in technique
Type of control elementRocker lever
With integrated under voltage releaseNo
Phase failure sensitiveYes
Type of electrical connection of main circuitScrew connection
Rated operating voltage1000 - 1000V
Switch off techniqueElectronic
Adjustment range undelayed short-circuit release220 - 3080A
Rated operation power at AC-3, 400 V110kW
Rated permanent current Iu220A
Number of poles3
Overload release current setting110 - 220A
Rated short-circuit breaking capacity lcu at 400 V, AC130kA
