Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width100mm
Number of auxiliary contacts as normally closed contact1
Depth116mm
Number of auxiliary contacts as normally open contact1
Rated operation power at AC-3, 400 V7.5kW
Height181mm
Number of poles3
Rated operating voltage690 - 690V
Type of electrical connection of main circuitScrew connection
Motor drive integratedNo
Rated permanent current Iu25A
Degree of protection (IP), front sideIP65
Conditioned rated short-circuit current Iq50kA
InterlockableYes
Number of switches1
Number of auxiliary contacts as change-over contact0
Version as emergency stop installationYes
Version as maintenance-/service switchYes
Type of control elementDoor coupling rotary drive
Suitable for distribution board installationNo
Version as safety switchNo
Suitable for front mounting 4-holeNo
Rated short-time withstand current lcw0.64kA
Suitable for floor mountingYes
Max. rated operation voltage Ue AC690V
Colour control elementRed
Rated operation power at AC-23, 400 V13kW
Suitable for intermediate mountingNo
Version as main switchYes
Suitable for front mounting centreNo
Motor drive optionalNo
Degree of protection (NEMA)12
Rated permanent current at AC-23, 400 V25A
Switching power at 400 V13kW
With pre-assembled cablingNo
Version as reversing switchNo
Rated permanent current at AC-21, 400 V25A
Device constructionComplete device in housing
Voltage release optionalNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

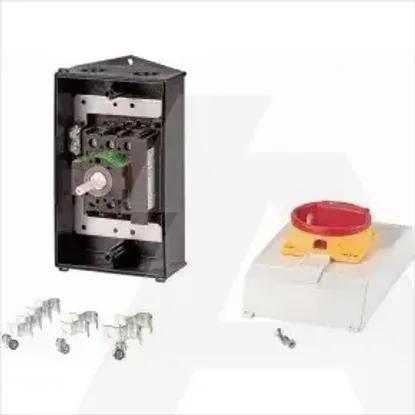

P1-25/I2H/MBS/SVB/HI11
