Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Rated permanent current Iu25A
Number of auxiliary contacts as normally open contact0
Rated operating voltage690 - 690V
Rated operation power at AC-3, 400 V7.5kW
Depth116mm
Width100mm
Height181mm
Conditioned rated short-circuit current Iq50kA
Number of poles3
Number of auxiliary contacts as normally closed contact0
Suitable for distribution board installationNo
Motor drive optionalNo
Max. rated operation voltage Ue AC690V
Voltage release optionalNo
Rated short-time withstand current lcw0.64kA
Colour control elementBlack
Device constructionComplete device in housing
Motor drive integratedNo
Suitable for front mounting centreNo
Version as maintenance-/service switchYes
Version as main switchYes
Degree of protection (IP), front sideIP65
Type of electrical connection of main circuitScrew connection
Type of control elementDoor coupling rotary drive
Version as safety switchNo
Rated operation power at AC-23, 400 V13kW
InterlockableYes
Number of switches1
Rated permanent current at AC-21, 400 V25A
Number of auxiliary contacts as change-over contact0
Switching power at 400 V13kW
Suitable for floor mountingYes
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingNo
Version as emergency stop installationNo
Version as reversing switchNo
Degree of protection (NEMA)12
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V25A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

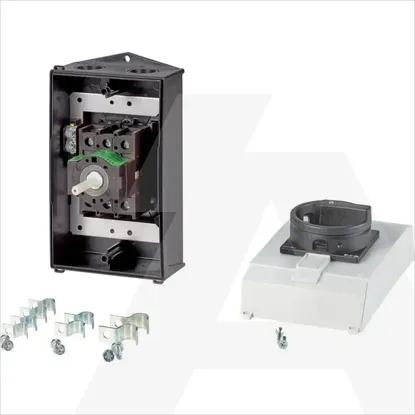

P1-25/I2H/MBS/SVB-SW
