Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Rated operation power at AC-3, 400 V13kW
Number of auxiliary contacts as normally open contact0
Height181mm
Width100mm
Depth116mm
Colour control elementRed
InterlockableYes
Rated permanent current Iu32A
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq80kA
Version as emergency stop installationYes
Motor drive integratedNo
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-23, 400 V15kW
Suitable for front mounting 4-holeNo
Number of poles3
Number of switches1
Rated short-time withstand current lcw0.64kA
Degree of protection (IP), front sideIP65
Suitable for floor mountingYes
Version as main switchYes
Version as safety switchNo
Type of electrical connection of main circuitScrew connection
Suitable for front mounting centreNo
Rated operating voltage690 - 690V
Type of control elementDoor coupling rotary drive
Version as maintenance-/service switchYes
Suitable for distribution board installationNo
Max. rated operation voltage Ue AC690V
Suitable for intermediate mountingNo
Voltage release optionalNo
Device constructionComplete device in housing
Motor drive optionalNo
Degree of protection (NEMA)12
Rated permanent current at AC-21, 400 V32A
With pre-assembled cablingNo
Switching power at 400 V15kW
Version as reversing switchNo
Rated permanent current at AC-23, 400 V32A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

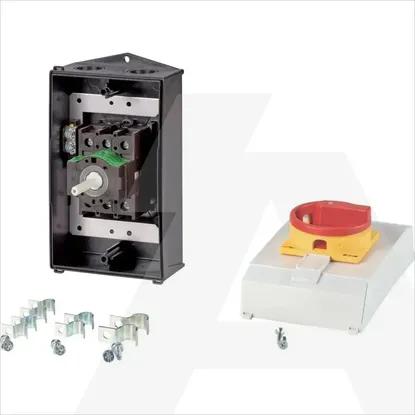

P1-32/I2H/MBS/SVB
