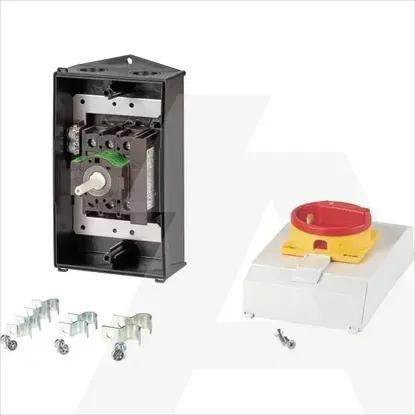

P1-32/I2H/MBS/SVB/HI11
Code: 1638769
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as main switchYes
Version as maintenance-/service switchYes
Version as safety switchNo
Rated operating voltage690 - 690V
Version as emergency stop installationYes
Version as reversing switchNo
Number of switches1
Rated permanent current at AC-21, 400 V32A
Rated permanent current at AC-23, 400 V32A
Rated permanent current Iu32A
Rated operation power at AC-23, 400 V15kW
Number of poles3
Motor drive optionalNo
Max. rated operation voltage Ue AC690V
Rated short-time withstand current lcw0.64kA
Number of auxiliary contacts as normally open contact1
Conditioned rated short-circuit current Iq80kA
Device constructionComplete device in housing
Rated operation power at AC-3, 400 V13kW
Motor drive integratedNo
Switching power at 400 V15kW
Number of auxiliary contacts as normally closed contact1
Voltage release optionalNo
Suitable for floor mountingYes
Suitable for front mounting centreNo
Number of auxiliary contacts as change-over contact0
Suitable for front mounting 4-holeNo
Suitable for distribution board installationNo
Colour control elementRed
Degree of protection (NEMA)12
InterlockableYes
Depth116mm
Type of electrical connection of main circuitScrew connection
Degree of protection (IP), front sideIP65
Height181mm
Type of control elementDoor coupling rotary drive
With pre-assembled cablingNo
Suitable for intermediate mountingNo
Width100mm
