Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width100mm
Height181mm
Rated operation power at AC-3, 400 V13kW
Depth116mm
Number of poles3
Version as maintenance-/service switchYes
Type of control elementDoor coupling rotary drive
Version as main switchYes
Rated permanent current Iu32A
Rated operating voltage690 - 690V
Motor drive integratedNo
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq80kA
Version as emergency stop installationNo
Number of auxiliary contacts as normally open contact1
Number of switches1
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as normally closed contact1
Version as safety switchNo
InterlockableYes
Rated operation power at AC-23, 400 V15kW
Rated short-time withstand current lcw0.64kA
Suitable for intermediate mountingNo
Suitable for front mounting centreNo
Degree of protection (NEMA)12
With pre-assembled cablingNo
Suitable for distribution board installationNo
Suitable for floor mountingYes
Voltage release optionalNo
Rated permanent current at AC-23, 400 V32A
Suitable for front mounting 4-holeNo
Colour control elementBlack
Max. rated operation voltage Ue AC690V
Device constructionComplete device in housing
Rated permanent current at AC-21, 400 V32A
Switching power at 400 V15kW
Version as reversing switchNo
Motor drive optionalNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

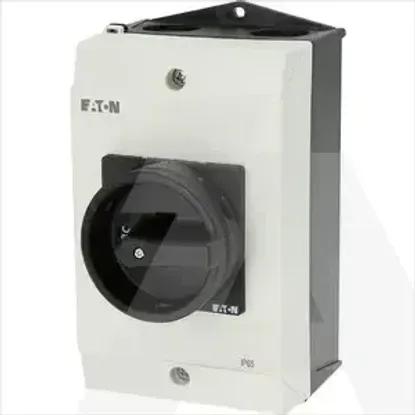

P1-32/I2H/MBS/SVB-SW/HI11
