Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width49mm
Conditioned rated short-circuit current Iq80kA
Number of auxiliary contacts as normally closed contact0
Number of poles3
Rated operating voltage690 - 690V
InterlockableNo
Degree of protection (IP), front sideIP65
Depth75mm
Motor drive integratedNo
Number of auxiliary contacts as normally open contact0
Number of switches1
Type of electrical connection of main circuitScrew connection
Rated permanent current Iu32A
Number of auxiliary contacts as change-over contact0
Height70mm
Version as emergency stop installationNo
Rated operation power at AC-3, 400 V13kW
Version as maintenance-/service switchYes
Version as main switchYes
Version as safety switchNo
Type of control elementOther
Suitable for floor mountingYes
Suitable for distribution board installationNo
Rated short-time withstand current lcw0.64kA
Colour control elementOther
Switching power at 400 V15kW
Rated operation power at AC-23, 400 V15kW
Suitable for intermediate mountingYes
Voltage release optionalNo
Rated permanent current at AC-21, 400 V32A
Device constructionBuilt-in device fixed built-in technique
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V32A
Degree of protection (NEMA)1
Motor drive optionalNo
Max. rated operation voltage Ue AC690V
Suitable for front mounting centreNo
Version as reversing switchNo
Suitable for front mounting 4-holeNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

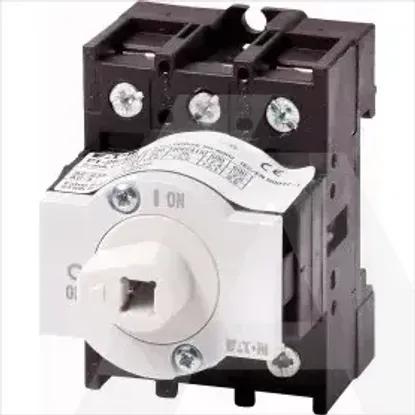

P1-32/XM
