Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated operating voltage690 - 690V
Type of electrical connection of main circuitScrew connection
Number of poles3
Conditioned rated short-circuit current Iq80kA
Rated operation power at AC-3, 400 V37kW
Depth82mm
Width72mm
Number of auxiliary contacts as change-over contact0
InterlockableNo
Number of switches1
Height84mm
Motor drive integratedNo
Degree of protection (IP), front sideIP65
Rated permanent current Iu100A
Colour control elementOther
Version as main switchYes
Rated operation power at AC-23, 400 V55kW
Version as emergency stop installationNo
Suitable for front mounting centreNo
Rated permanent current at AC-21, 400 V100A
Max. rated operation voltage Ue AC690V
Type of control elementOther
Switching power at 400 V55kW
Suitable for front mounting 4-holeNo
Suitable for intermediate mountingYes
Version as maintenance-/service switchNo
Suitable for floor mountingYes
Version as reversing switchNo
Voltage release optionalNo
Rated short-time withstand current lcw2kA
Motor drive optionalNo
Suitable for distribution board installationNo
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V100A
Degree of protection (NEMA)1
Device constructionBuilt-in device fixed built-in technique
Version as safety switchNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

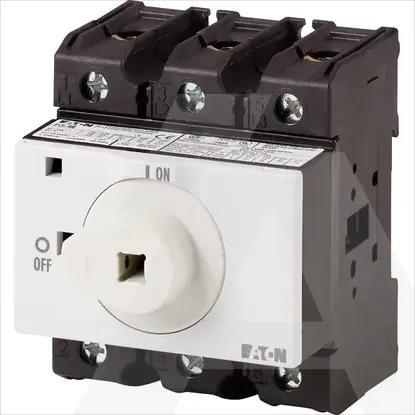

P3-100/XM
