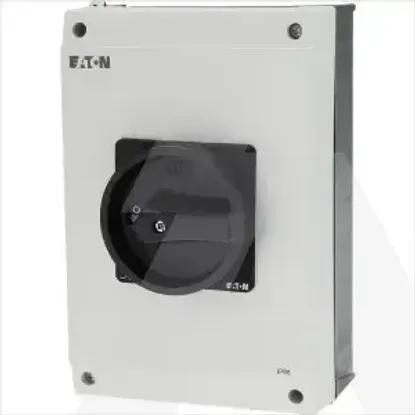

P3-63/I4/MBS/SVB-SW
Code: 1638777
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as safety switchNo
Version as emergency stop installationNo
Version as main switchYes
Version as maintenance-/service switchYes
Number of switches1
Version as reversing switchNo
Max. rated operation voltage Ue AC690V
Rated operating voltage690 - 690V
Rated operation power at AC-3, 400 V30kW
Rated permanent current at AC-21, 400 V63A
Rated permanent current Iu63A
Rated permanent current at AC-23, 400 V63A
Switching power at 400 V30kW
Rated operation power at AC-23, 400 V30kW
Conditioned rated short-circuit current Iq100kA
Rated short-time withstand current lcw1.26kA
Number of poles3
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally open contact0
Motor drive integratedNo
Device constructionComplete device in housing
Motor drive optionalNo
Suitable for front mounting 4-holeNo
Suitable for floor mountingYes
Number of auxiliary contacts as normally closed contact0
Voltage release optionalNo
Suitable for front mounting centreNo
Suitable for distribution board installationNo
Suitable for intermediate mountingNo
Colour control elementBlack
Type of electrical connection of main circuitScrew connection
Type of control elementDoor coupling rotary drive
InterlockableYes
Degree of protection (IP), front sideIP65
Degree of protection (NEMA)12
Height240mm
Width160mm
Depth139mm
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
P3-63/I4/MBS/SVB-SW
Details
- Low-voltage industrial components
- Switch disconnector (low voltage)
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Version as safety switch
Version as emergency stop installation
Version as main switch
Version as maintenance-/service switch
Number of switches
1
Version as reversing switch
Max. rated operation voltage Ue AC
690V
Rated operating voltage
690 .. 690V
Rated operation power at AC-3, 400 V
30kW
Rated permanent current at AC-21, 400 V
63A
Rated permanent current Iu
63A
Rated permanent current at AC-23, 400 V
63A
Switching power at 400 V
30kW
Rated operation power at AC-23, 400 V
30kW
Conditioned rated short-circuit current Iq
100kA
Rated short-time withstand current lcw
1.26kA
Number of poles
3
Number of auxiliary contacts as change-over contact
0
Number of auxiliary contacts as normally open contact
0
Motor drive integrated
Device construction
Complete device in housing
Motor drive optional
Suitable for front mounting 4-hole
Suitable for floor mounting
Number of auxiliary contacts as normally closed contact
0
Voltage release optional
Suitable for front mounting centre
Suitable for distribution board installation
Suitable for intermediate mounting
Colour control element
Black
Type of electrical connection of main circuit
Screw connection
Type of control element
Door coupling rotary drive
Interlockable
Degree of protection (IP), front side
IP65
Degree of protection (NEMA)
12
Height
240mm
Width
160mm
Depth
139mm
With pre-assembled cabling
