Details

  • •Low-voltage industrial components
  • •Switch disconnector (low voltage)
  • •1 KOM
  • •EATON

Technical specifications

Version as main switchYes
Version as reversing switchNo
Number of switches1
Version as safety switchNo
Version as maintenance-/service switchNo
Rated operation power at AC-3, 400 V30kW
Rated permanent current Iu63A
Version as emergency stop installationNo
Rated permanent current at AC-23, 400 V63A
Rated operating voltage690 - 690V
Rated permanent current at AC-21, 400 V63A
Rated short-time withstand current lcw1.26kA
Max. rated operation voltage Ue AC690V
Rated operation power at AC-23, 400 V30kW
Number of auxiliary contacts as normally closed contact0
Switching power at 400 V30kW
Number of auxiliary contacts as change-over contact0
Number of poles3
Number of auxiliary contacts as normally open contact0
Motor drive optionalNo
Suitable for floor mountingYes
Voltage release optionalNo
Device constructionBuilt-in device fixed built-in technique
Suitable for distribution board installationNo
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Motor drive integratedNo
InterlockableNo
Degree of protection (IP), front sideIP65
Colour control elementOther
Type of control elementOther
Width72mm
Degree of protection (NEMA)1
Depth82mm
Suitable for intermediate mountingYes
With pre-assembled cablingNo
Type of electrical connection of main circuitScrew connection
Height84mm
Conditioned rated short-circuit current Iq100kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

P3-63/XM

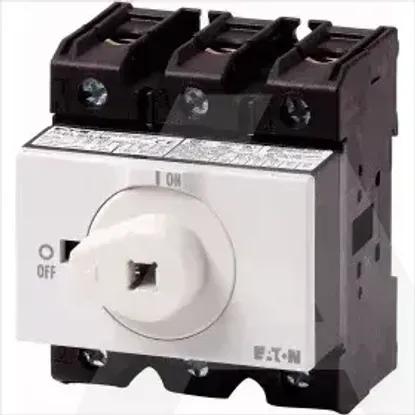

Main Product Image

Details

  • Low-voltage industrial components
  • Switch disconnector (low voltage)
  • 1 KOM
  • EATON

Technical specifications

Version as main switch

Version as reversing switch

Number of switches

1

Version as safety switch

Version as maintenance-/service switch

Rated operation power at AC-3, 400 V

30kW

Rated permanent current Iu

63A

Version as emergency stop installation

Rated permanent current at AC-23, 400 V

63A

Rated operating voltage

690 .. 690V

Rated permanent current at AC-21, 400 V

63A

Rated short-time withstand current lcw

1.26kA

Max. rated operation voltage Ue AC

690V

Rated operation power at AC-23, 400 V

30kW

Number of auxiliary contacts as normally closed contact

0

Switching power at 400 V

30kW

Number of auxiliary contacts as change-over contact

0

Number of poles

3

Number of auxiliary contacts as normally open contact

0

Motor drive optional

Suitable for floor mounting

Voltage release optional

Device construction

Built-in device fixed built-in technique

Suitable for distribution board installation

Suitable for front mounting 4-hole

Suitable for front mounting centre

Motor drive integrated

Interlockable

Degree of protection (IP), front side

IP65

Colour control element

Other

Type of control element

Other

Width

72mm

Degree of protection (NEMA)

1

Depth

82mm

Suitable for intermediate mounting

With pre-assembled cabling

Type of electrical connection of main circuit

Screw connection

Height

84mm

Conditioned rated short-circuit current Iq

100kA
