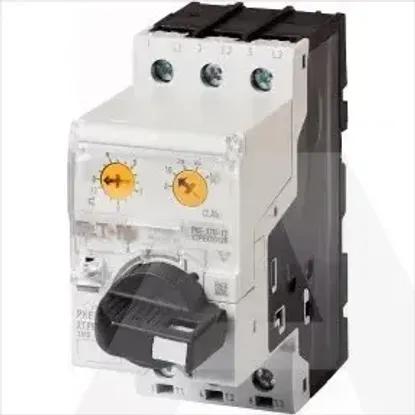

Details
- •Low-voltage industrial components
- •Motor protection circuit-breaker
- •1 KOM
- •EATON
Technical specifications
Width45mm
Height102.5mm
Depth120.5mm
With thermal protectionYes
With integrated under voltage releaseNo
Degree of protection (IP)IP20
Rated operation power at AC-3, 400 V0kW
Rated permanent current Iu12A
With integrated auxiliary switchNo
Number of poles3
Rated operating voltage690 - 690V
Overload release current setting3 - 12A
Type of electrical connection of main circuitScrew connection
Type of control elementTurn button
Device constructionBuilt-in device fixed built-in technique
Rated operation power at AC-3, 230 V0kW
Phase failure sensitiveYes
Rated short-circuit breaking capacity lcu at 400 V, AC0kA
Switch off techniqueElectronic
Adjustment range undelayed short-circuit release186 - 186A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
PKE12/AK/XTU-12
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Motor protection circuit-breaker
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Width
45mm
Height
102.5mm
Depth
120.5mm
With thermal protection
With integrated under voltage release
Degree of protection (IP)
IP20
Rated operation power at AC-3, 400 V
0kW
Rated permanent current Iu
12A
With integrated auxiliary switch
Number of poles
3
Rated operating voltage
690 .. 690V
Overload release current setting
3 .. 12A
Type of electrical connection of main circuit
Screw connection
Type of control element
Turn button
Device construction
Built-in device fixed built-in technique
Rated operation power at AC-3, 230 V
0kW
Phase failure sensitive
Rated short-circuit breaking capacity lcu at 400 V, AC
0kA
Switch off technique
Electronic
Adjustment range undelayed short-circuit release
186 .. 186A
