Details
- •Low-voltage industrial components
- •Motor protection circuit-breaker
- •1 KOM
- •EATON
Technical specifications
Height102.5mm
Rated operation power at AC-3, 400 V15kW
With integrated under voltage releaseNo
Number of poles3
With integrated auxiliary switchNo
Width45mm
Depth120.5mm
Rated permanent current Iu32A
Phase failure sensitiveYes
Rated short-circuit breaking capacity lcu at 400 V, AC0kA
Rated operation power at AC-3, 230 V7.5kW
Device constructionBuilt-in device fixed built-in technique
Type of electrical connection of main circuitScrew connection
Type of control elementTurn button
With thermal protectionYes
Degree of protection (IP)IP20
Adjustment range undelayed short-circuit release496 - 496A
Switch off techniqueElectronic
Rated operating voltage690 - 690V
Overload release current setting8 - 32A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

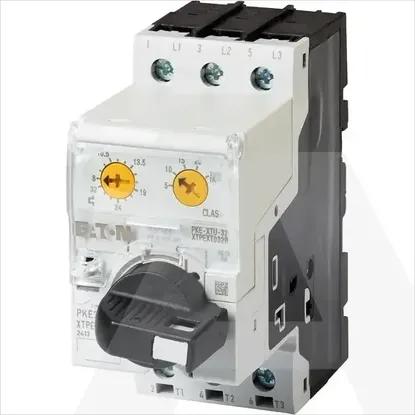

PKE32/AK/XTU-32
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Motor protection circuit-breaker
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Height
102.5mm
Rated operation power at AC-3, 400 V
15kW
With integrated under voltage release
Number of poles
3
With integrated auxiliary switch
Width
45mm
Depth
120.5mm
Rated permanent current Iu
32A
Phase failure sensitive
Rated short-circuit breaking capacity lcu at 400 V, AC
0kA
Rated operation power at AC-3, 230 V
7.5kW
Device construction
Built-in device fixed built-in technique
Type of electrical connection of main circuit
Screw connection
Type of control element
Turn button
With thermal protection
Degree of protection (IP)
IP20
Adjustment range undelayed short-circuit release
496 .. 496A
Switch off technique
Electronic
Rated operating voltage
690 .. 690V
Overload release current setting
8 .. 32A
