Details

  • •Low-voltage industrial components
  • •Motor protection circuit-breaker
  • •1 KOM
  • •EATON

Technical specifications

Rated operation power at AC-3, 400 V30kW
With integrated auxiliary switchNo
Height162mm
Depth198mm
Width55mm
Rated permanent current Iu65A
Number of poles3
With integrated under voltage releaseNo
Degree of protection (IP)IP20
Rated operating voltage690 - 690V
Phase failure sensitiveYes
Switch off techniqueElectronic
Adjustment range undelayed short-circuit release1008 - 1008A
With thermal protectionNo
Overload release current setting16 - 65A
Device constructionBuilt-in device fixed built-in technique
Rated operation power at AC-3, 230 V18.5kW
Type of control elementTurn button
Type of electrical connection of main circuitScrew connection
Rated short-circuit breaking capacity lcu at 400 V, AC50kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

PKE65/AK/XTU-65

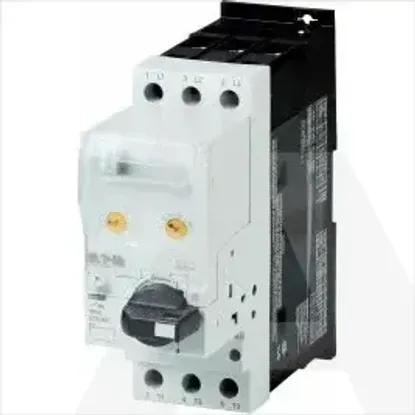

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Low-voltage industrial components
  • Motor protection circuit-breaker
  • 1 KOM
  • EATON

Technical specifications

Rated operation power at AC-3, 400 V

30kW

With integrated auxiliary switch

Height

162mm

Depth

198mm

Width

55mm

Rated permanent current Iu

65A

Number of poles

3

With integrated under voltage release

Degree of protection (IP)

IP20

Rated operating voltage

690 .. 690V

Phase failure sensitive

Switch off technique

Electronic

Adjustment range undelayed short-circuit release

1008 .. 1008A

With thermal protection

Overload release current setting

16 .. 65A

Device construction

Built-in device fixed built-in technique

Rated operation power at AC-3, 230 V

18.5kW

Type of control element

Turn button

Type of electrical connection of main circuit

Screw connection

Rated short-circuit breaking capacity lcu at 400 V, AC

50kA
