Details

  • •Circuit breakers and fuses
  • •Miniature circuit breaker (MCB)
  • •1 KOM
  • •EATON

Technical specifications

Degree of protection (IP)IP20
Voltage typeAC
Built-in depth69.5mm
Suitable for flush-mounted installationNo
Rated current63A
Rated voltage230V
Width in number of modular spacings4
Release characteristicC
Ambient temperature during operating-25 - 75°C
Connectable conductor cross section multi-wired1 - 25mm²
Connectable conductor cross section solid-core1 - 25mm²
Concurrently switching neutral conductorNo
Number of protected poles4
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V0kA
Rated impulse withstand voltage Uimp4kV
Rated insulation voltage Ui440V
Number of poles (total)4
Current limiting class3
Additional equipment possibleYes
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V0kA
Pollution degree2
Frequency50 - 60Hz
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V10kA
Over voltage category3
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V10kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

PL7-C63/4

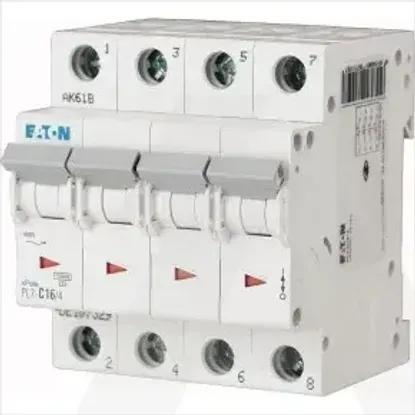

Main Product Image

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • EATON

Technical specifications

Degree of protection (IP)

IP20

Voltage type

AC

Built-in depth

69.5mm

Suitable for flush-mounted installation

Rated current

63A

Rated voltage

230V

Width in number of modular spacings

4

Release characteristic

C

Ambient temperature during operating

-25 .. 75°C

Connectable conductor cross section multi-wired

1 .. 25mm²

Connectable conductor cross section solid-core

1 .. 25mm²

Concurrently switching neutral conductor

Number of protected poles

4

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

0kA

Rated impulse withstand voltage Uimp

4kV

Rated insulation voltage Ui

440V

Number of poles (total)

4

Current limiting class

3

Additional equipment possible

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

0kA

Pollution degree

2

Frequency

50 .. 60Hz

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10kA

Over voltage category

3

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

10kA
