Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •EATON
Technical specifications
Number of conductors (without earthing)2
Construction size3 modular spacing
Voltage protection level2.7kV
Mounting methodDIN rail (top hat rail) 35 mm
With remote signalling contactNo
Signalling at the deviceOptic
Nominal discharge surge current (8/20)15kA
Nominal voltage AC0V
Voltage protection level L-N0kV
Max. continuous voltage AC0V
Nominal voltage DC670V
Category type 2Yes
Integrated backup fuseNo
Max. PV-voltage800V
Degree of protection (IP)IP20
System configuration DCNo
System configuration TN-SNo
Max. continuous voltage DC800V
System configuration TNNo
System configuration TN-C-SNo
System configuration otherNo
Max. discharge surge current (8/20)40kA
System configuration TN-CNo
Max. conductor cross section solid (solid, stranded)0mm²
System configuration TTNo
Max. conductor cross section flexible (fine-strand)0mm²
Voltage protection level N-PE0kV
System configuration ITYes
Integrated short-circuit protectionNo
Max. overcurrent protection device, parallel connection (fuse)0A
Leakage-current freeNo
Integrated short-circuit protection selective to fuse gG0A
Short-circuit breaking capacity (Isccr)0kA
Max. overcurrent protection device, series connection (fuse)0A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

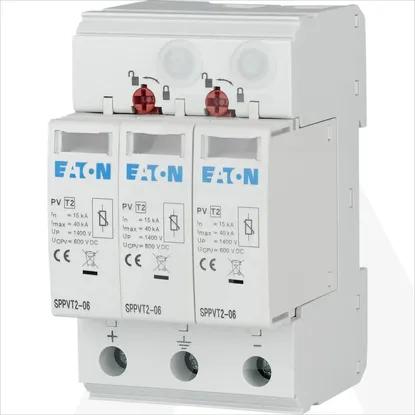

SPPVT2-06-2+PE
