Details
- •Cables
- •Data and communication cable
- •1 KOM
- •EATON
Technical specifications
Colour outer sheathGreen
UV resistantYes
Nominal cross section conductor0.5mm²
Core identificationColour
Nominal voltage U24V
Material core insulationOther
Cable typeOther
Drain wireNo
Stranding elementPairs
Protective sheathOther
Diameter conductor1.5mm
Material outer sheathPolyvinyl chloride (PVC)
Number of stranding elements5
CategoryOther
Screen over stranding elementFoil
Characteristic impedance100Ohm
Armouring/reinforcementNone
Conductor categoryClass 2 = stranded
Permitted cable outer temperature during assembling/handling-40 - 80°C
Conductor materialOther
Permitted cable outer temperature after assembling without vibration-40 - 80°C
Screen over strandingNone
Halogen free (according to IEC 60754-2)No
Cable height approx.16.3mm
Suitable for underground installationNo
Cable width approx.5.6mm
Number of cores5
StrandingBundle
Low smoke (according to IEC 61034-2)No
NVP value66.5%
Outer diameter approx.5.6mm
With rodent protectionNo
Oil resistant (according to EN 60811-404)Yes
Conductor surfaceBare
Radial water blocking cableYes
Longitudinal water blocking cableYes
Reaction-to-fire class according to EN 13501-6None
Euro class acidity according to EN 13501-6None
Euro class flaming droplets/particles according to EN 13501-6None
Smoke development class according to EN 13501-6None
Min. permitted bending radius, moving application with forced guidance46mm
AWG size20
Min. permitted bending radius, moving application/free movement46mm
Min. permitted bending radius, stationary application/permanent installation34mm
Specification material outer sheathPolypropylene (PP)
Specification core insulationOther
Material reinforcementOther
Cable geometryRound
Suitable as signalling cableYes
Core identification according to HD 308 S2No
Suitable as telephone cableNo
Halogen free according to IEC 60754-3No
Suitable for use as security alarm cableNo
Halogen free according to IEC 60754-1No
Compatible with Grade3TV according to XP-C 90-483No
Flame retardant according to IEC 60332-3-25 (Cat D)No
DuplexNo
Certified for shipboard applicationNo
With rip cordNo
Circuit integrity according to IEC 60331-23No
Number of sheath layers0
Compatible with Grade2TV according to XP-C 90-483No
Flame retardant according to IEC 60332-3-23 (Cat B)No
Approved type of underground installationOther
Flame retardant according to IEC 60332-1-2No
Flame retardant according to IEC 60332-3-21 (Cat A F/R)No
Flame retardant according to IEC 60332-3-22 (Cat A)No
Flame retardant according to IEC 60332-3-24 (Cat C)No
Suitable as computer data cableNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

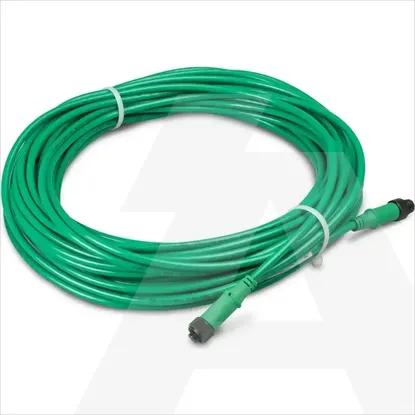

SWD4-10LR5-2S
