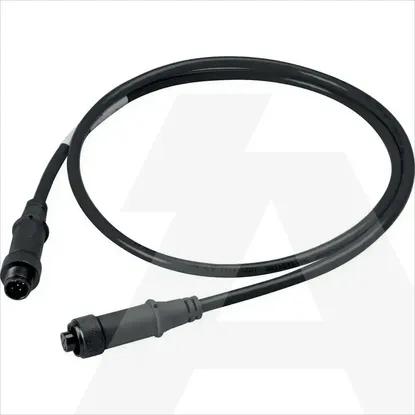

SWD4-1LR5-1-2S
Code: 1639500
Details
- •Cables
- •Data and communication cable
- •1 KOM
- •EATON
Technical specifications
DuplexNo
Diameter conductor1.5mm
Conductor materialOther
Conductor surfaceBare
Cable typeOther
AWG size20
Nominal cross section conductor0.5mm²
Conductor categoryClass 2 = stranded
Stranding elementPairs
Number of cores5
Screen over stranding elementFoil
Number of stranding elements19
Longitudinal water blocking cableNo
Screen over strandingNone
Core identificationColour
Specification core insulationOther
Armouring/reinforcementNone
Core identification according to HD 308 S2No
StrandingBundle
Cable geometryRound
Specification material outer sheathOther
Material outer sheathPolyurethane (PUR)
Approved type of underground installationOther
Flame retardant according to IEC 60332-3-21 (Cat A F/R)No
Flame retardant according to IEC 60332-1-2No
Suitable for underground installationNo
Material core insulationOther
Colour outer sheathBlack
Material reinforcementOther
Radial water blocking cableYes
Protective sheathOther
Number of sheath layers0
Permitted cable outer temperature during assembling/handling-25 - 80°C
Permitted cable outer temperature after assembling without vibration-40 - 80°C
CategoryOther
NVP value66.5%
Certified for shipboard applicationNo
UV resistantYes
Suitable as telephone cableNo
Suitable as computer data cableNo
Suitable as signalling cableYes
Suitable for use as security alarm cableNo
Drain wireNo
Cable width approx.5.6mm
With rip cordNo
Cable height approx.16.3mm
Characteristic impedance100Ohm
Nominal voltage U24V
Compatible with Grade2TV according to XP-C 90-483No
With rodent protectionNo
Compatible with Grade3TV according to XP-C 90-483No
Flame retardant according to IEC 60332-3-23 (Cat B)No
Flame retardant according to IEC 60332-3-22 (Cat A)No
Flame retardant according to IEC 60332-3-24 (Cat C)No
Flame retardant according to IEC 60332-3-25 (Cat D)No
Low smoke (according to IEC 61034-2)No
Halogen free according to IEC 60754-1No
Halogen free (according to IEC 60754-2)No
Halogen free according to IEC 60754-3No
Reaction-to-fire class according to EN 13501-6None
Smoke development class according to EN 13501-6None
Euro class acidity according to EN 13501-6None
Euro class flaming droplets/particles according to EN 13501-6None
Oil resistant (according to EN 60811-404)Yes
Outer diameter approx.4.55mm
Min. permitted bending radius, moving application/free movement38mm
Min. permitted bending radius, moving application with forced guidance38mm
Circuit integrity according to IEC 60331-23No
Min. permitted bending radius, stationary application/permanent installation34mm
