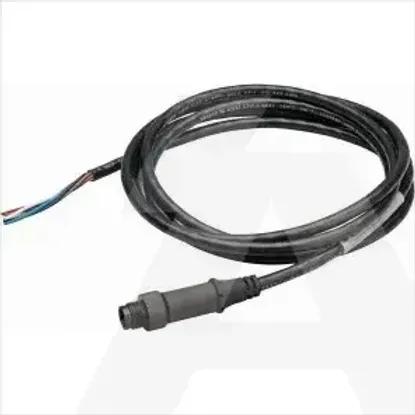

SWD4-1LR5-S
Code: 1639502
Details
- •Cables
- •Data and communication cable
- •1 KOM
- •EATON
Technical specifications
Diameter conductor1.5mm
Nominal cross section conductor0.5mm²
Number of cores5
AWG size20
Stranding elementPairs
Conductor categoryClass 2 = stranded
Material core insulationOther
StrandingBundle
DuplexNo
Number of stranding elements19
Screen over stranding elementFoil
Conductor surfaceBare
Conductor materialOther
Radial water blocking cableYes
Material outer sheathPolyvinyl chloride (PVC)
Core identificationColour
Screen over strandingNone
Longitudinal water blocking cableYes
Suitable for underground installationNo
Armouring/reinforcementNone
Approved type of underground installationOther
Protective sheathOther
Cable geometryRound
Colour outer sheathGreen
Material reinforcementOther
Specification core insulationOther
Core identification according to HD 308 S2No
Number of sheath layers0
Specification material outer sheathOther
Cable typeOther
Flame retardant according to IEC 60332-3-21 (Cat A F/R)No
Flame retardant according to IEC 60332-3-22 (Cat A)No
Flame retardant according to IEC 60332-3-24 (Cat C)No
Flame retardant according to IEC 60332-3-23 (Cat B)No
Flame retardant according to IEC 60332-3-25 (Cat D)No
Flame retardant according to IEC 60332-1-2No
Low smoke (according to IEC 61034-2)No
Permitted cable outer temperature after assembling without vibration-40 - 80°C
CategoryOther
Permitted cable outer temperature during assembling/handling-40 - 80°C
NVP value66.5%
Certified for shipboard applicationNo
UV resistantYes
Suitable as computer data cableNo
Suitable as signalling cableYes
Drain wireNo
Suitable as telephone cableNo
Suitable for use as security alarm cableNo
Cable height approx.16.3mm
Characteristic impedance100Ohm
With rip cordNo
Cable width approx.5.6mm
With rodent protectionNo
Nominal voltage U24V
Compatible with Grade3TV according to XP-C 90-483No
Compatible with Grade2TV according to XP-C 90-483No
Halogen free (according to IEC 60754-2)No
Halogen free according to IEC 60754-1No
Halogen free according to IEC 60754-3No
Reaction-to-fire class according to EN 13501-6None
Smoke development class according to EN 13501-6None
Euro class acidity according to EN 13501-6None
Euro class flaming droplets/particles according to EN 13501-6None
Circuit integrity according to IEC 60331-23No
Outer diameter approx.5.6mm
Oil resistant (according to EN 60811-404)Yes
Min. permitted bending radius, stationary application/permanent installation34mm
Min. permitted bending radius, moving application/free movement38mm
Min. permitted bending radius, moving application with forced guidance38mm
