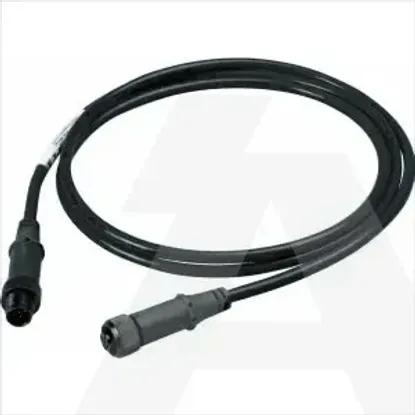

SWD4-2LR5-1-2S
Code: 1639505
Details
- •Cables
- •Data and communication cable
- •1 KOM
- •EATON
Technical specifications
Conductor materialOther
Cable typeOther
Conductor surfaceBare
AWG size20
Number of cores5
Number of stranding elements19
Nominal cross section conductor0.5mm²
Stranding elementPairs
DuplexNo
Diameter conductor1.5mm
Conductor categoryClass 2 = stranded
Core identificationColour
Core identification according to HD 308 S2No
StrandingBundle
Specification core insulationOther
Screen over strandingNone
Longitudinal water blocking cableYes
Approved type of underground installationOther
Material core insulationOther
Material outer sheathPolyurethane (PUR)
Material reinforcementOther
Screen over stranding elementFoil
Radial water blocking cableYes
Armouring/reinforcementNone
Number of sheath layers0
Colour outer sheathBlack
Flame retardant according to IEC 60332-3-23 (Cat B)No
Specification material outer sheathPolypropylene (PP)
Protective sheathOther
Flame retardant according to IEC 60332-3-22 (Cat A)No
Cable geometryRound
Flame retardant according to IEC 60332-3-21 (Cat A F/R)No
Flame retardant according to IEC 60332-3-24 (Cat C)No
Flame retardant according to IEC 60332-1-2No
Low smoke (according to IEC 61034-2)No
Halogen free according to IEC 60754-3No
Reaction-to-fire class according to EN 13501-6None
Halogen free (according to IEC 60754-2)No
Flame retardant according to IEC 60332-3-25 (Cat D)No
Euro class flaming droplets/particles according to EN 13501-6None
Smoke development class according to EN 13501-6None
Halogen free according to IEC 60754-1No
Suitable for underground installationNo
Euro class acidity according to EN 13501-6None
Permitted cable outer temperature during assembling/handling-25 - 80°C
Permitted cable outer temperature after assembling without vibration-40 - 80°C
CategoryOther
NVP value66.5%
UV resistantNo
Certified for shipboard applicationNo
Suitable as telephone cableNo
Suitable as computer data cableNo
Suitable as signalling cableYes
Suitable for use as security alarm cableNo
Drain wireNo
With rip cordNo
Cable width approx.5.6mm
Cable height approx.16.3mm
Nominal voltage U24V
With rodent protectionNo
Compatible with Grade2TV according to XP-C 90-483No
Compatible with Grade3TV according to XP-C 90-483No
Characteristic impedance100Ohm
Oil resistant (according to EN 60811-404)Yes
Circuit integrity according to IEC 60331-23No
Min. permitted bending radius, moving application with forced guidance38mm
Min. permitted bending radius, moving application/free movement38mm
Outer diameter approx.4.55mm
Min. permitted bending radius, stationary application/permanent installation34mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
SWD4-2LR5-1-2S
Details
- Cables
- Data and communication cable
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Conductor material
Other
Cable type
Other
Conductor surface
Bare
AWG size
20
Number of cores
5
Number of stranding elements
19
Nominal cross section conductor
0.5mm²
Stranding element
Pairs
Duplex
Diameter conductor
1.5mm
Conductor category
Class 2 = stranded
Core identification
Colour
Core identification according to HD 308 S2
Stranding
Bundle
Specification core insulation
Other
Screen over stranding
None
Longitudinal water blocking cable
Approved type of underground installation
Other
Material core insulation
Other
Material outer sheath
Polyurethane (PUR)
Material reinforcement
Other
Screen over stranding element
Foil
Radial water blocking cable
Armouring/reinforcement
None
Number of sheath layers
0
Colour outer sheath
Black
Flame retardant according to IEC 60332-3-23 (Cat B)
Specification material outer sheath
Polypropylene (PP)
Protective sheath
Other
Flame retardant according to IEC 60332-3-22 (Cat A)
Cable geometry
Round
Flame retardant according to IEC 60332-3-21 (Cat A F/R)
Flame retardant according to IEC 60332-3-24 (Cat C)
Flame retardant according to IEC 60332-1-2
Low smoke (according to IEC 61034-2)
Halogen free according to IEC 60754-3
Reaction-to-fire class according to EN 13501-6
None
Halogen free (according to IEC 60754-2)
Flame retardant according to IEC 60332-3-25 (Cat D)
Euro class flaming droplets/particles according to EN 13501-6
None
Smoke development class according to EN 13501-6
None
Halogen free according to IEC 60754-1
Suitable for underground installation
Euro class acidity according to EN 13501-6
None
Permitted cable outer temperature during assembling/handling
-25 .. 80°C
Permitted cable outer temperature after assembling without vibration
-40 .. 80°C
Category
Other
NVP value
66.5%
UV resistant
Certified for shipboard application
Suitable as telephone cable
Suitable as computer data cable
Suitable as signalling cable
Suitable for use as security alarm cable
Drain wire
With rip cord
Cable width approx.
5.6mm
Cable height approx.
16.3mm
Nominal voltage U
24V
With rodent protection
Compatible with Grade2TV according to XP-C 90-483
Compatible with Grade3TV according to XP-C 90-483
Characteristic impedance
100Ohm
Oil resistant (according to EN 60811-404)
Circuit integrity according to IEC 60331-23
Min. permitted bending radius, moving application with forced guidance
38mm
Min. permitted bending radius, moving application/free movement
38mm
Outer diameter approx.
4.55mm
Min. permitted bending radius, stationary application/permanent installation
34mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
