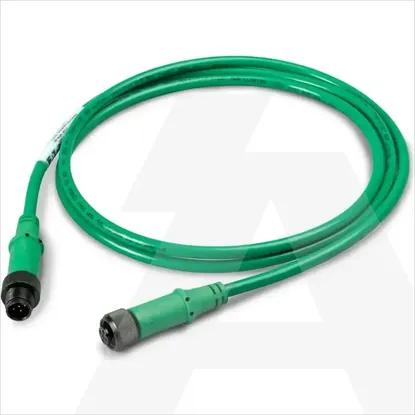

SWD4-4LR5-2S
Code: 1639509
Details
- •Cables
- •Data and communication cable
- •1 KOM
- •EATON
Technical specifications
Nominal cross section conductor0.5mm²
AWG size20
Diameter conductor1.5mm
Cable typeOther
Number of cores5
Stranding elementPairs
DuplexNo
Specification core insulationOther
Conductor surfaceBare
Screen over stranding elementFoil
Material core insulationOther
Conductor categoryClass 2 = stranded
Core identification according to HD 308 S2No
Number of stranding elements5
Approved type of underground installationOther
Conductor materialOther
Material outer sheathPolyvinyl chloride (PVC)
Suitable for underground installationNo
Screen over strandingNone
Specification material outer sheathOther
Colour outer sheathGreen
Longitudinal water blocking cableNo
Number of sheath layers0
Flame retardant according to IEC 60332-3-21 (Cat A F/R)No
Cable geometryRound
Material reinforcementOther
Flame retardant according to IEC 60332-3-23 (Cat B)No
Radial water blocking cableYes
Flame retardant according to IEC 60332-3-22 (Cat A)No
Flame retardant according to IEC 60332-1-2No
Armouring/reinforcementNone
StrandingBundles and layers
Protective sheathOther
Core identificationColour
Permitted cable outer temperature during assembling/handling-40 - 80°C
CategoryOther
Permitted cable outer temperature after assembling without vibration-40 - 80°C
NVP value66.5%
Certified for shipboard applicationNo
Suitable as telephone cableNo
UV resistantNo
Suitable as computer data cableNo
Drain wireNo
Suitable for use as security alarm cableNo
Cable width approx.5.6mm
With rip cordNo
Cable height approx.16.3mm
Characteristic impedance100Ohm
Nominal voltage U24V
Suitable as signalling cableYes
With rodent protectionNo
Compatible with Grade2TV according to XP-C 90-483No
Compatible with Grade3TV according to XP-C 90-483No
Flame retardant according to IEC 60332-3-25 (Cat D)No
Flame retardant according to IEC 60332-3-24 (Cat C)No
Low smoke (according to IEC 61034-2)No
Halogen free according to IEC 60754-1No
Halogen free (according to IEC 60754-2)No
Reaction-to-fire class according to EN 13501-6None
Halogen free according to IEC 60754-3No
Smoke development class according to EN 13501-6None
Min. permitted bending radius, moving application with forced guidance46mm
Min. permitted bending radius, moving application/free movement46mm
Euro class flaming droplets/particles according to EN 13501-6None
Oil resistant (according to EN 60811-404)Yes
Outer diameter approx.5.6mm
Circuit integrity according to IEC 60331-23No
Min. permitted bending radius, stationary application/permanent installation34mm
Euro class acidity according to EN 13501-6None
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
SWD4-4LR5-2S
Details
- Cables
- Data and communication cable
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Nominal cross section conductor
0.5mm²
AWG size
20
Diameter conductor
1.5mm
Cable type
Other
Number of cores
5
Stranding element
Pairs
Duplex
Specification core insulation
Other
Conductor surface
Bare
Screen over stranding element
Foil
Material core insulation
Other
Conductor category
Class 2 = stranded
Core identification according to HD 308 S2
Number of stranding elements
5
Approved type of underground installation
Other
Conductor material
Other
Material outer sheath
Polyvinyl chloride (PVC)
Suitable for underground installation
Screen over stranding
None
Specification material outer sheath
Other
Colour outer sheath
Green
Longitudinal water blocking cable
Number of sheath layers
0
Flame retardant according to IEC 60332-3-21 (Cat A F/R)
Cable geometry
Round
Material reinforcement
Other
Flame retardant according to IEC 60332-3-23 (Cat B)
Radial water blocking cable
Flame retardant according to IEC 60332-3-22 (Cat A)
Flame retardant according to IEC 60332-1-2
Armouring/reinforcement
None
Stranding
Bundles and layers
Protective sheath
Other
Core identification
Colour
Permitted cable outer temperature during assembling/handling
-40 .. 80°C
Category
Other
Permitted cable outer temperature after assembling without vibration
-40 .. 80°C
NVP value
66.5%
Certified for shipboard application
Suitable as telephone cable
UV resistant
Suitable as computer data cable
Drain wire
Suitable for use as security alarm cable
Cable width approx.
5.6mm
With rip cord
Cable height approx.
16.3mm
Characteristic impedance
100Ohm
Nominal voltage U
24V
Suitable as signalling cable
With rodent protection
Compatible with Grade2TV according to XP-C 90-483
Compatible with Grade3TV according to XP-C 90-483
Flame retardant according to IEC 60332-3-25 (Cat D)
Flame retardant according to IEC 60332-3-24 (Cat C)
Low smoke (according to IEC 61034-2)
Halogen free according to IEC 60754-1
Halogen free (according to IEC 60754-2)
Reaction-to-fire class according to EN 13501-6
None
Halogen free according to IEC 60754-3
Smoke development class according to EN 13501-6
None
Min. permitted bending radius, moving application with forced guidance
46mm
Min. permitted bending radius, moving application/free movement
46mm
Euro class flaming droplets/particles according to EN 13501-6
None
Oil resistant (according to EN 60811-404)
Outer diameter approx.
5.6mm
Circuit integrity according to IEC 60331-23
Min. permitted bending radius, stationary application/permanent installation
34mm
Euro class acidity according to EN 13501-6
None
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
