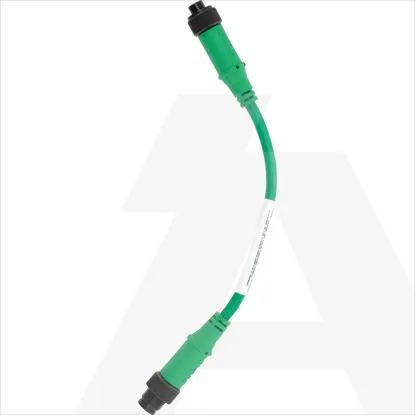

SWD4-M1LR5-2S
Code: 1639512
Details
- •Cables
- •Data and communication cable
- •1 KOM
- •EATON
Technical specifications
Nominal cross section conductor0.5mm²
Cable typeOther
DuplexNo
Conductor surfaceBare
Diameter conductor1.5mm
AWG size20
Conductor materialOther
Conductor categoryClass 2 = stranded
Number of cores5
Stranding elementPairs
Number of stranding elements5
Material core insulationOther
Specification core insulationOther
Core identificationColour
StrandingBundle
Screen over strandingNone
Radial water blocking cableYes
Longitudinal water blocking cableYes
Screen over stranding elementFoil
Suitable for underground installationNo
Specification material outer sheathPolypropylene (PP)
Colour outer sheathGreen
Protective sheathOther
Core identification according to HD 308 S2No
Approved type of underground installationOther
Number of sheath layers0
Material outer sheathPolyvinyl chloride (PVC)
Material reinforcementOther
Cable geometryRound
Flame retardant according to IEC 60332-3-22 (Cat A)No
Armouring/reinforcementNone
Flame retardant according to IEC 60332-3-25 (Cat D)No
Flame retardant according to IEC 60332-1-2No
Halogen free according to IEC 60754-1No
Low smoke (according to IEC 61034-2)No
Flame retardant according to IEC 60332-3-23 (Cat B)No
Euro class flaming droplets/particles according to EN 13501-6None
Flame retardant according to IEC 60332-3-24 (Cat C)No
Halogen free according to IEC 60754-3No
Halogen free (according to IEC 60754-2)No
Smoke development class according to EN 13501-6None
Flame retardant according to IEC 60332-3-21 (Cat A F/R)No
Reaction-to-fire class according to EN 13501-6None
Oil resistant (according to EN 60811-404)Yes
Euro class acidity according to EN 13501-6None
Min. permitted bending radius, moving application/free movement46mm
Outer diameter approx.5.6mm
Min. permitted bending radius, stationary application/permanent installation34mm
Min. permitted bending radius, moving application with forced guidance46mm
Circuit integrity according to IEC 60331-23No
Permitted cable outer temperature during assembling/handling-40 - 80°C
Permitted cable outer temperature after assembling without vibration-40 - 80°C
CategoryOther
NVP value66.5%
UV resistantYes
Suitable as computer data cableNo
Suitable as telephone cableNo
Certified for shipboard applicationNo
Suitable as signalling cableYes
Cable width approx.5.6mm
Drain wireNo
With rip cordNo
Cable height approx.16.3mm
Characteristic impedance100Ohm
With rodent protectionNo
Nominal voltage U24V
Compatible with Grade3TV according to XP-C 90-483No
Compatible with Grade2TV according to XP-C 90-483No
Suitable for use as security alarm cableNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
