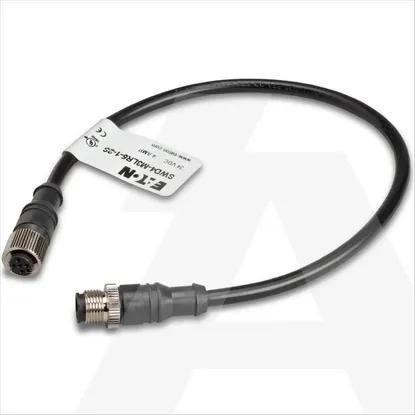

SWD4-M3LR5-1-2S
Code: 1639513
Details
- •Cables
- •Data and communication cable
- •1 KOM
- •EATON
Technical specifications
DuplexNo
Nominal cross section conductor0.5mm²
AWG size20
Cable typeOther
Diameter conductor1.5mm
Number of stranding elements19
Conductor categoryClass 2 = stranded
Core identification according to HD 308 S2No
Specification core insulationOther
Material core insulationOther
Specification material outer sheathOther
Cable geometryRound
Radial water blocking cableYes
Screen over strandingNone
Material outer sheathPolyurethane (PUR)
Colour outer sheathBlack
Suitable for underground installationNo
Flame retardant according to IEC 60332-3-22 (Cat A)No
Conductor surfaceBare
Halogen free according to IEC 60754-3No
Armouring/reinforcementNone
Flame retardant according to IEC 60332-1-2No
Reaction-to-fire class according to EN 13501-6None
Flame retardant according to IEC 60332-3-23 (Cat B)No
Halogen free according to IEC 60754-1No
Flame retardant according to IEC 60332-3-24 (Cat C)No
Flame retardant according to IEC 60332-3-25 (Cat D)No
Halogen free (according to IEC 60754-2)No
StrandingBundle
Conductor materialOther
Protective sheathOther
Number of cores5
Low smoke (according to IEC 61034-2)No
Stranding elementPairs
Screen over stranding elementFoil
Number of sheath layers0
Flame retardant according to IEC 60332-3-21 (Cat A F/R)No
Core identificationColour
Longitudinal water blocking cableNo
Material reinforcementOther
Approved type of underground installationOther
Permitted cable outer temperature during assembling/handling-25 - 80°C
Permitted cable outer temperature after assembling without vibration-40 - 80°C
CategoryOther
NVP value66.5%
UV resistantYes
Suitable as signalling cableYes
Suitable as computer data cableNo
Certified for shipboard applicationNo
Suitable as telephone cableNo
Suitable for use as security alarm cableNo
Drain wireNo
With rip cordNo
Cable height approx.16.3mm
Cable width approx.5.6mm
Characteristic impedance100Ohm
With rodent protectionNo
Nominal voltage U24V
Compatible with Grade3TV according to XP-C 90-483No
Compatible with Grade2TV according to XP-C 90-483No
Smoke development class according to EN 13501-6None
Euro class acidity according to EN 13501-6None
Oil resistant (according to EN 60811-404)Yes
Euro class flaming droplets/particles according to EN 13501-6None
Outer diameter approx.4.55mm
Min. permitted bending radius, moving application with forced guidance38mm
Min. permitted bending radius, moving application/free movement38mm
Min. permitted bending radius, stationary application/permanent installation34mm
Circuit integrity according to IEC 60331-23No
