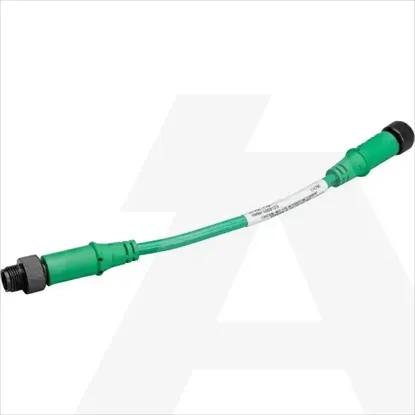

SWD4-M3LR5-2S
Code: 1639514
Details
- •Cables
- •Data and communication cable
- •1 KOM
- •EATON
Technical specifications
Cable typeOther
Conductor surfaceBare
Diameter conductor1.5mm
Conductor categoryClass 2 = stranded
Conductor materialOther
AWG size20
Specification core insulationOther
Number of cores5
Number of stranding elements5
DuplexNo
Nominal cross section conductor0.5mm²
Screen over stranding elementFoil
StrandingBundle
Material core insulationOther
Core identificationColour
Suitable for underground installationNo
Radial water blocking cableYes
Stranding elementPairs
Screen over strandingNone
Core identification according to HD 308 S2No
Longitudinal water blocking cableNo
Material outer sheathPolyvinyl chloride (PVC)
Protective sheathOther
Approved type of underground installationOther
Armouring/reinforcementNone
Colour outer sheathGreen
Cable geometryRound
Flame retardant according to IEC 60332-3-22 (Cat A)No
Specification material outer sheathPolypropylene (PP)
Flame retardant according to IEC 60332-3-23 (Cat B)No
Number of sheath layers0
Flame retardant according to IEC 60332-1-2No
Material reinforcementOther
Flame retardant according to IEC 60332-3-24 (Cat C)No
Flame retardant according to IEC 60332-3-21 (Cat A F/R)No
Flame retardant according to IEC 60332-3-25 (Cat D)No
Permitted cable outer temperature during assembling/handling-40 - 80°C
CategoryOther
Permitted cable outer temperature after assembling without vibration-40 - 80°C
NVP value66.5%
UV resistantNo
Suitable as telephone cableNo
Certified for shipboard applicationNo
Suitable as computer data cableNo
Suitable as signalling cableYes
Suitable for use as security alarm cableNo
Cable width approx.5.6mm
Drain wireNo
Characteristic impedance100Ohm
Cable height approx.16.3mm
With rip cordNo
Nominal voltage U24V
With rodent protectionNo
Compatible with Grade2TV according to XP-C 90-483No
Compatible with Grade3TV according to XP-C 90-483No
Halogen free according to IEC 60754-1No
Low smoke (according to IEC 61034-2)No
Halogen free (according to IEC 60754-2)No
Halogen free according to IEC 60754-3No
Euro class acidity according to EN 13501-6None
Min. permitted bending radius, moving application with forced guidance46mm
Min. permitted bending radius, moving application/free movement46mm
Outer diameter approx.5.6mm
Oil resistant (according to EN 60811-404)Yes
Min. permitted bending radius, stationary application/permanent installation34mm
Reaction-to-fire class according to EN 13501-6None
Euro class flaming droplets/particles according to EN 13501-6None
Smoke development class according to EN 13501-6None
Circuit integrity according to IEC 60331-23No
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
