Details
- •Cables
- •Data and communication cable
- •1 KOM
- •EATON
Technical specifications
UV resistantYes
Drain wireNo
Nominal cross section conductor0.5mm²
Permitted cable outer temperature during assembling/handling-25 - 80°C
Armouring/reinforcementNone
Cable typeOther
Conductor materialOther
Number of stranding elements19
Core identificationColour
Material core insulationOther
Conductor categoryClass 2 = stranded
Suitable for underground installationNo
CategoryOther
Material outer sheathPolyurethane (PUR)
Diameter conductor1.5mm
Stranding elementPairs
Permitted cable outer temperature after assembling without vibration-40 - 80°C
Cable width approx.5.6mm
Colour outer sheathBlack
Characteristic impedance100Ohm
Halogen free (according to IEC 60754-2)No
Protective sheathOther
Screen over strandingNone
Screen over stranding elementFoil
Number of cores5
Nominal voltage U24V
Suitable as computer data cableNo
Longitudinal water blocking cableNo
Suitable as telephone cableNo
With rodent protectionNo
Smoke development class according to EN 13501-6None
Cable height approx.16.3mm
Outer diameter approx.4.55mm
Euro class flaming droplets/particles according to EN 13501-6None
Reaction-to-fire class according to EN 13501-6None
Min. permitted bending radius, stationary application/permanent installation34mm
Specification material outer sheathOther
Oil resistant (according to EN 60811-404)Yes
AWG size20
Conductor surfaceBare
Min. permitted bending radius, moving application with forced guidance38mm
NVP value66.5%
Specification core insulationOther
Euro class acidity according to EN 13501-6None
Radial water blocking cableYes
Core identification according to HD 308 S2No
Material reinforcementOther
Cable geometryRound
Low smoke (according to IEC 61034-2)No
StrandingBundle
Min. permitted bending radius, moving application/free movement38mm
Suitable as signalling cableYes
Flame retardant according to IEC 60332-3-22 (Cat A)No
Flame retardant according to IEC 60332-3-21 (Cat A F/R)No
Compatible with Grade2TV according to XP-C 90-483No
With rip cordNo
Flame retardant according to IEC 60332-1-2No
Compatible with Grade3TV according to XP-C 90-483No
Certified for shipboard applicationNo
Approved type of underground installationOther
Flame retardant according to IEC 60332-3-23 (Cat B)No
DuplexNo
Halogen free according to IEC 60754-3No
Halogen free according to IEC 60754-1No
Circuit integrity according to IEC 60331-23No
Suitable for use as security alarm cableNo
Flame retardant according to IEC 60332-3-25 (Cat D)No
Flame retardant according to IEC 60332-3-24 (Cat C)No
Number of sheath layers0
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

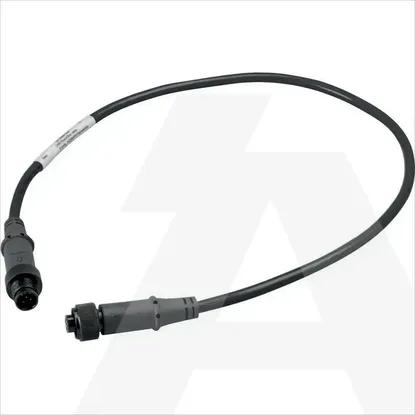

SWD4-M6LR5-1-2S
