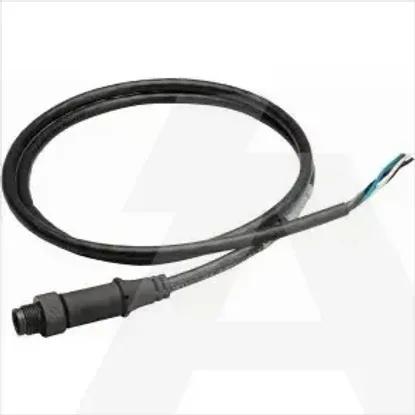

SWD4-M6LR5-S
Code: 1639518
ManufacturerEaton
Catalog number174772
TypeSWD4-M6LR5-S
CategoryData and communication cable
EAN code4015081712588
Details
- •Cables
- •Data and communication cable
- •1 KOM
- •EATON
Technical specifications
UV resistantNo
Screen over stranding elementNone
Material core insulationOther
Conductor categoryClass 2 = stranded
Core identificationColour
Stranding elementNo
Drain wireNo
Screen over strandingNone
Nominal voltage U24V
Characteristic impedance100Ohm
Diameter conductor1.5mm
CategoryOther
Material outer sheathPolyurethane (PUR)
Permitted cable outer temperature after assembling without vibration-40 - 80°C
Permitted cable outer temperature during assembling/handling-25 - 80°C
Armouring/reinforcementNone
Suitable for underground installationNo
Protective sheathOther
Number of cores5
AWG size20
With rodent protectionNo
Low smoke (according to IEC 61034-2)No
Longitudinal water blocking cableNo
Outer diameter approx.4.55mm
Conductor surfaceBare
Min. permitted bending radius, moving application with forced guidance38mm
Euro class flaming droplets/particles according to EN 13501-6None
NVP value66.5%
Oil resistant (according to EN 60811-404)Yes
Radial water blocking cableYes
Cable width approx.5.6mm
Smoke development class according to EN 13501-6None
Cable height approx.16.3mm
Reaction-to-fire class according to EN 13501-6None
StrandingOther
Min. permitted bending radius, stationary application/permanent installation34mm
Min. permitted bending radius, moving application/free movement38mm
Halogen free (according to IEC 60754-2)No
Number of stranding elements19
Euro class acidity according to EN 13501-6None
Specification core insulationOther
Material reinforcementOther
Flame retardant according to IEC 60332-3-21 (Cat A F/R)No
Approved type of underground installationOther
Specification material outer sheathOther
Suitable as telephone cableNo
Suitable as computer data cableNo
Flame retardant according to IEC 60332-1-2No
Number of sheath layers0
Certified for shipboard applicationNo
Core identification according to HD 308 S2No
Flame retardant according to IEC 60332-3-22 (Cat A)No
Flame retardant according to IEC 60332-3-25 (Cat D)No
Flame retardant according to IEC 60332-3-23 (Cat B)No
Halogen free according to IEC 60754-3No
Suitable for use as security alarm cableNo
Cable geometryRound
Compatible with Grade2TV according to XP-C 90-483No
With rip cordNo
Flame retardant according to IEC 60332-3-24 (Cat C)No
Suitable as signalling cableYes
Circuit integrity according to IEC 60331-23No
Halogen free according to IEC 60754-1No
DuplexNo
Compatible with Grade3TV according to XP-C 90-483No
Nominal cross section conductor0.5mm²
Cable typeOther
Colour outer sheathGreen
Conductor materialOther
