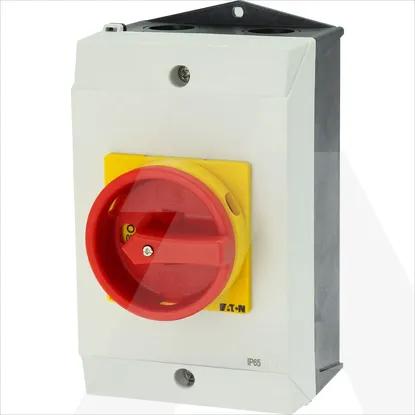

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Height181mm
Rated permanent current Iu20A
Number of poles3
Number of auxiliary contacts as normally open contact1
Rated operation power at AC-3, 400 V5.5kW
Depth136mm
Rated operating voltage690 - 690V
Width100mm
Number of auxiliary contacts as normally closed contact0
Version as emergency stop installationYes
Motor drive integratedNo
Number of switches1
Number of auxiliary contacts as change-over contact0
Type of electrical connection of main circuitScrew connection
Conditioned rated short-circuit current Iq6kA
Degree of protection (IP), front sideIP65
InterlockableYes
Suitable for front mounting centreNo
Type of control elementDoor coupling rotary drive
Suitable for floor mountingYes
Suitable for distribution board installationNo
Version as safety switchNo
Suitable for intermediate mountingNo
Suitable for front mounting 4-holeNo
Version as maintenance-/service switchYes
Colour control elementRed
Motor drive optionalNo
Device constructionComplete device in housing
Voltage release optionalNo
Max. rated operation voltage Ue AC690V
Version as main switchYes
Rated short-time withstand current lcw0.32kA
Rated operation power at AC-23, 400 V5.5kW
Rated permanent current at AC-21, 400 V20A
Version as reversing switchNo
With pre-assembled cablingNo
Degree of protection (NEMA)12
Rated permanent current at AC-23, 400 V13.3A
Switching power at 400 V5.5kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
T0-2-15679/I2H/MBS/SVB
